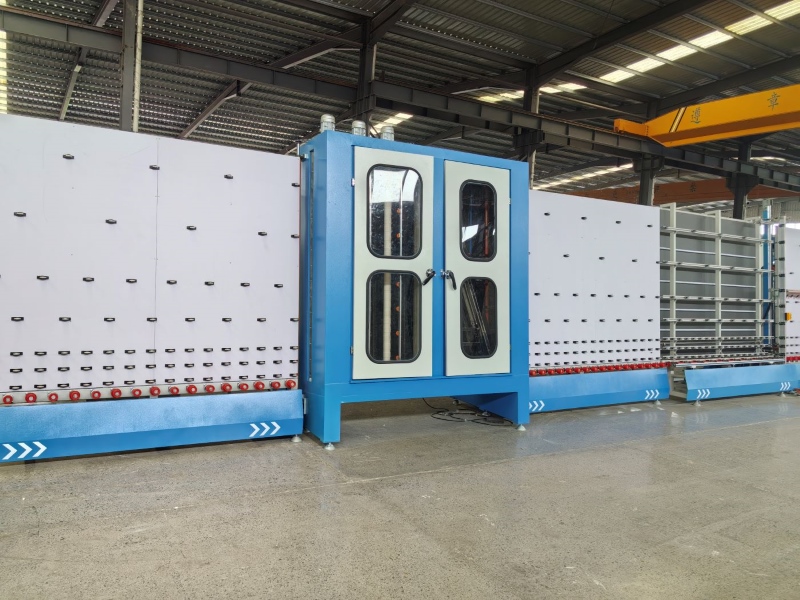

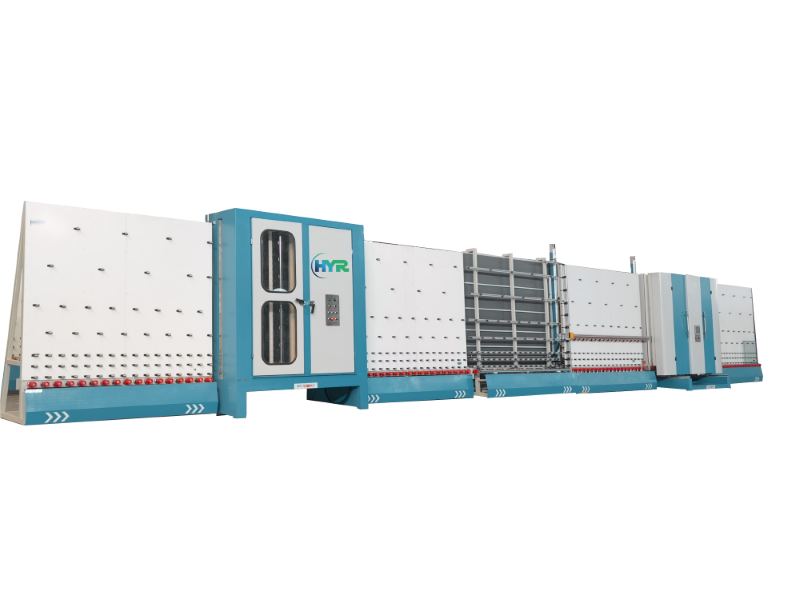

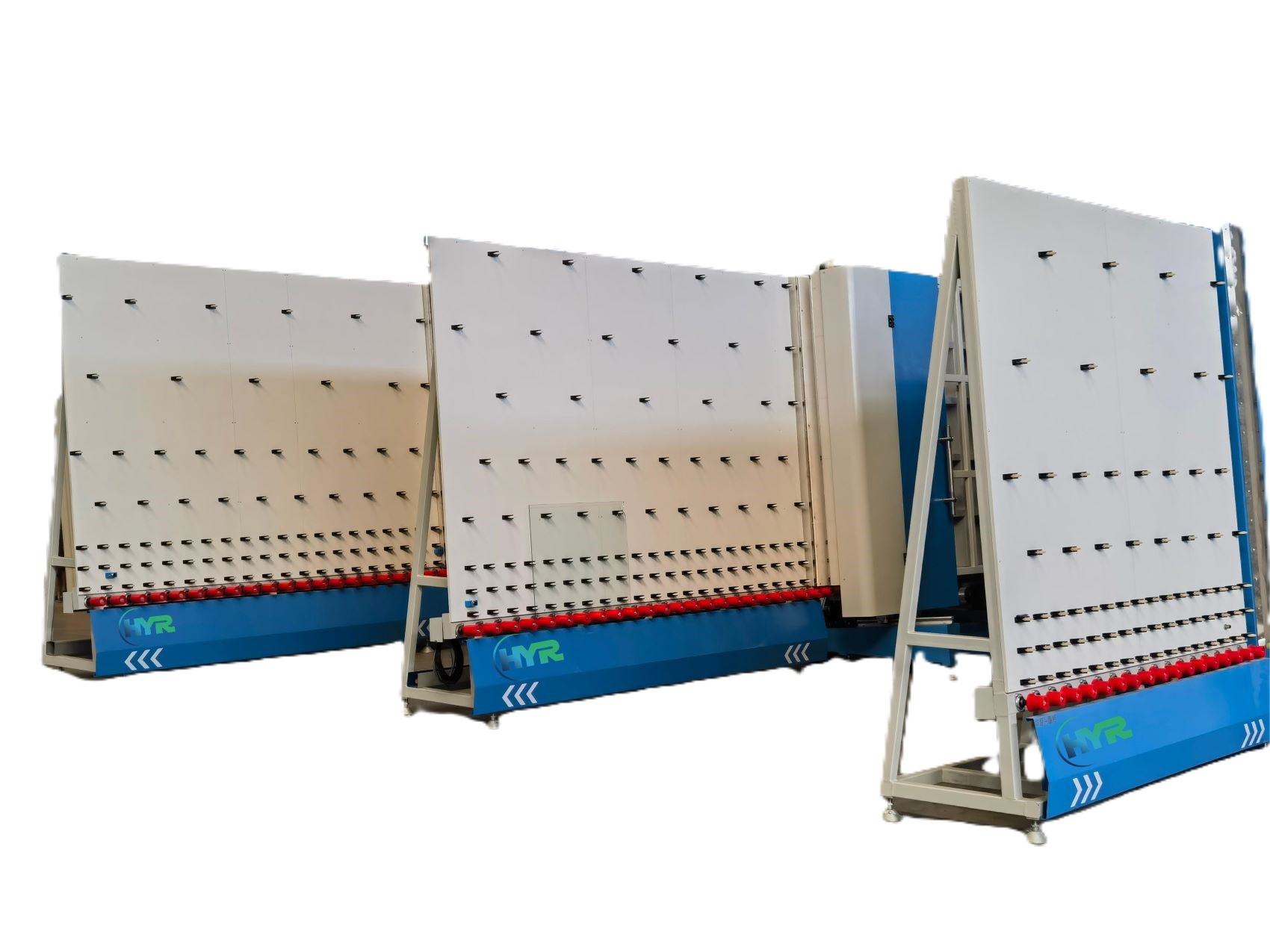

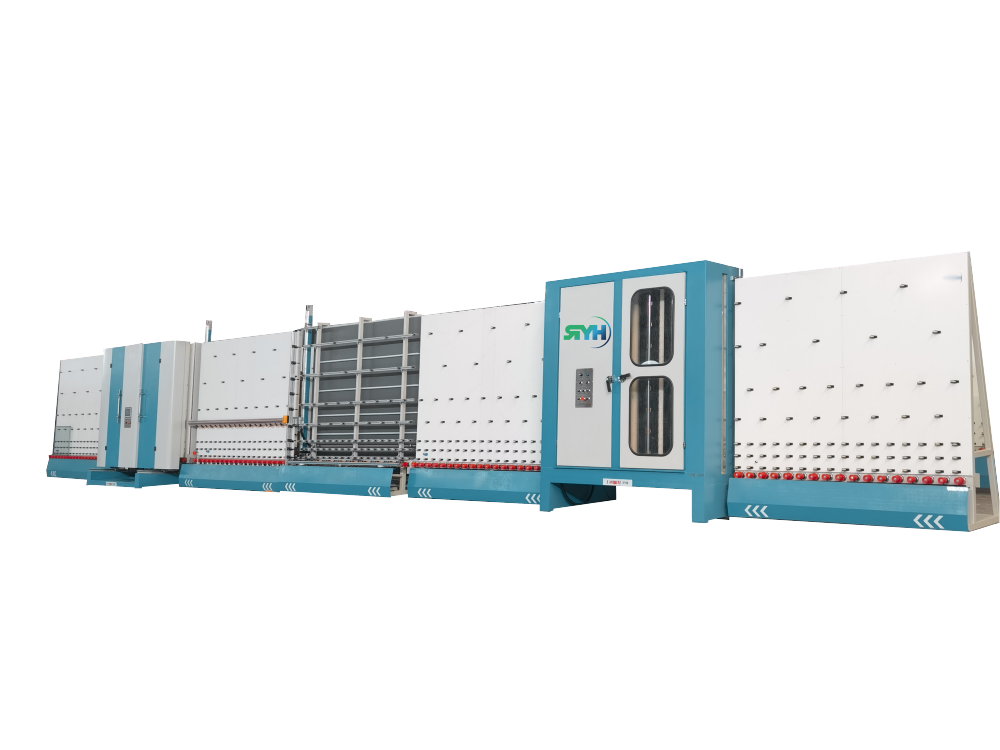

Multi-Functional Insulating Glass Production Line

Product Advantages:

The main features of this glass washing machine include the use of stainless steel and corrosion-resistant materials for the wash areas, three pairs of independently operable brushes with adjustable spacing, and CNC automation programming. It is capable of producing double and triple glazed hollow glass, as well as long glass with secondary plate pressing. The machine offers both automatic and manual operation for ease of use. It features exclusive point adjustment technology for plate pressure and an automatic plate pressure maintenance function. A circulating hot air drying section enhances cleaning speed and reduces noise, while high-density soft brushes clean various types of LOW-E and coated glasses. The machine is equipped with an advanced intelligent cleaning system and can be customized for forward and reverse directions based on glass travel. Additionally, it offers customizable on-board inflation functions, including PW-C (external closure inflation) and PW (external closure).


Contact Now E-Mail Telephone WhatsApp
Product Details
  • **Durable and Precise Washing Section:**

- The washing section is meticulously constructed from stainless steel and corrosion-resistant materials, ensuring longevity and reliability. It is fitted with three sets of brushes that can be operated independently and adjusted for optimal spacing. These brushes are powered by CNC automated programming, which guarantees a high level of precision and efficiency in the cleaning process.


  • **Adaptable Glass Production Capabilities:**

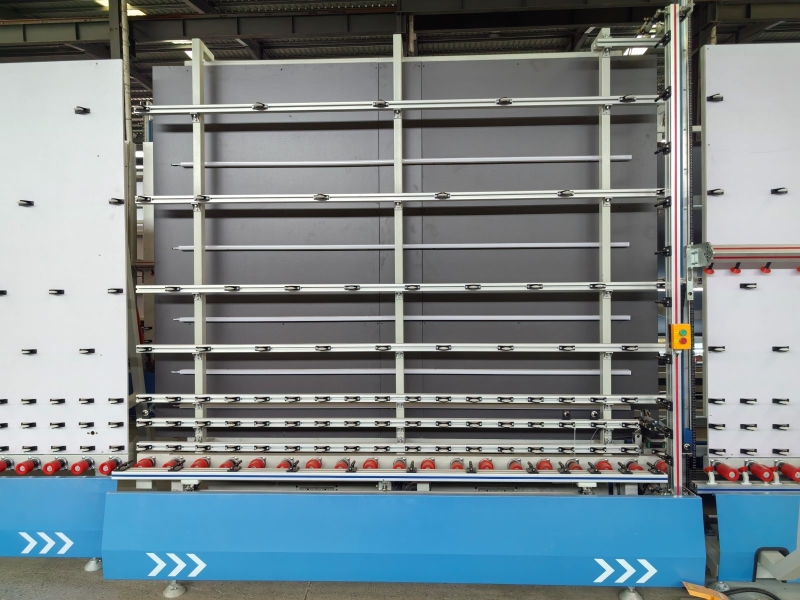

- This machine is engineered to manufacture both double-glazed and triple-glazed insulating glass, with the added ability to process long glass panels. It provides the convenience of operating in either automatic or manual mode, accommodating different user preferences and production requirements. The pressing plate features a proprietary point adjustment technology, which is supported by an automatic maintenance function to ensure the pressing mechanism remains in peak condition.


  • **High-Efficiency Drying and Intelligent Cleaning:**

- A key component of the machine is the circulating hot air drying section, which significantly boosts cleaning efficiency, ensures complete drying, and operates quietly. The machine is fitted with high-density soft brushes that are perfect for cleaning a variety of glass types, including LOW-E and coated glass. An advanced intelligent cleaning system is embedded within the machine to deliver optimal performance.


  • **Customizable Travel Direction and Inflation Options:**

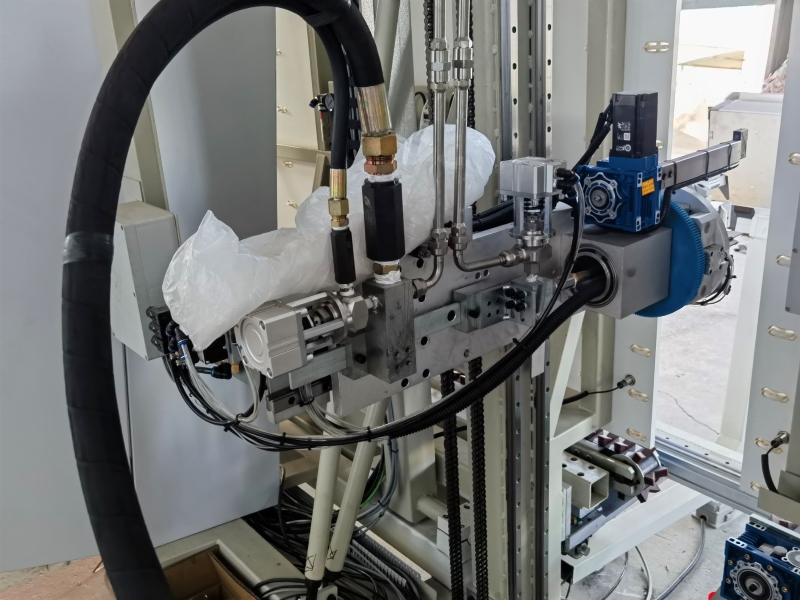

- The machine's travel direction is customizable, enabling it to operate in either forward or reverse, which is particularly useful for accommodating the specific path of the glass. Additionally, the equipment can be customized to include a board inflation feature, which is available in two configurations: PW-C with external sealed inflation and PW with external sealed, adding to the machine's versatility and adaptability to different production environments.


Multi-Functional Insulating Glass Production LineMulti-Functional Insulating Glass Production Line

Multi-Functional Insulating Glass Production LineMulti-Functional Insulating Glass Production Line


Technical Parameters

Voltage

3P/380V/50Hz

Maximum glass size

2000×2500mm

Total power

28KW

Maximum thickness of insulating glass

60mm

Washing speed

0-13m/min

Air consumption

1m³/min

Maximum working speed

50m/min

Dimension

18200×2800×2920mm

Minimum glass size

300×450mm
