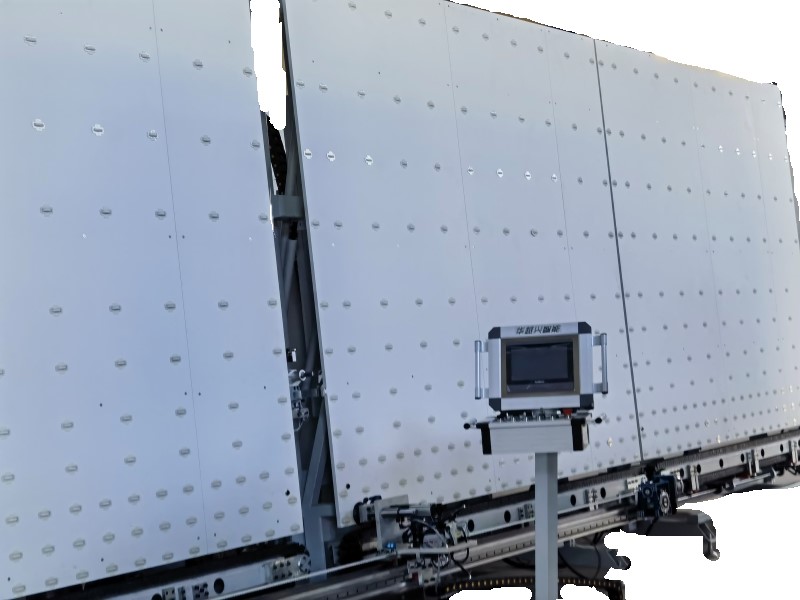

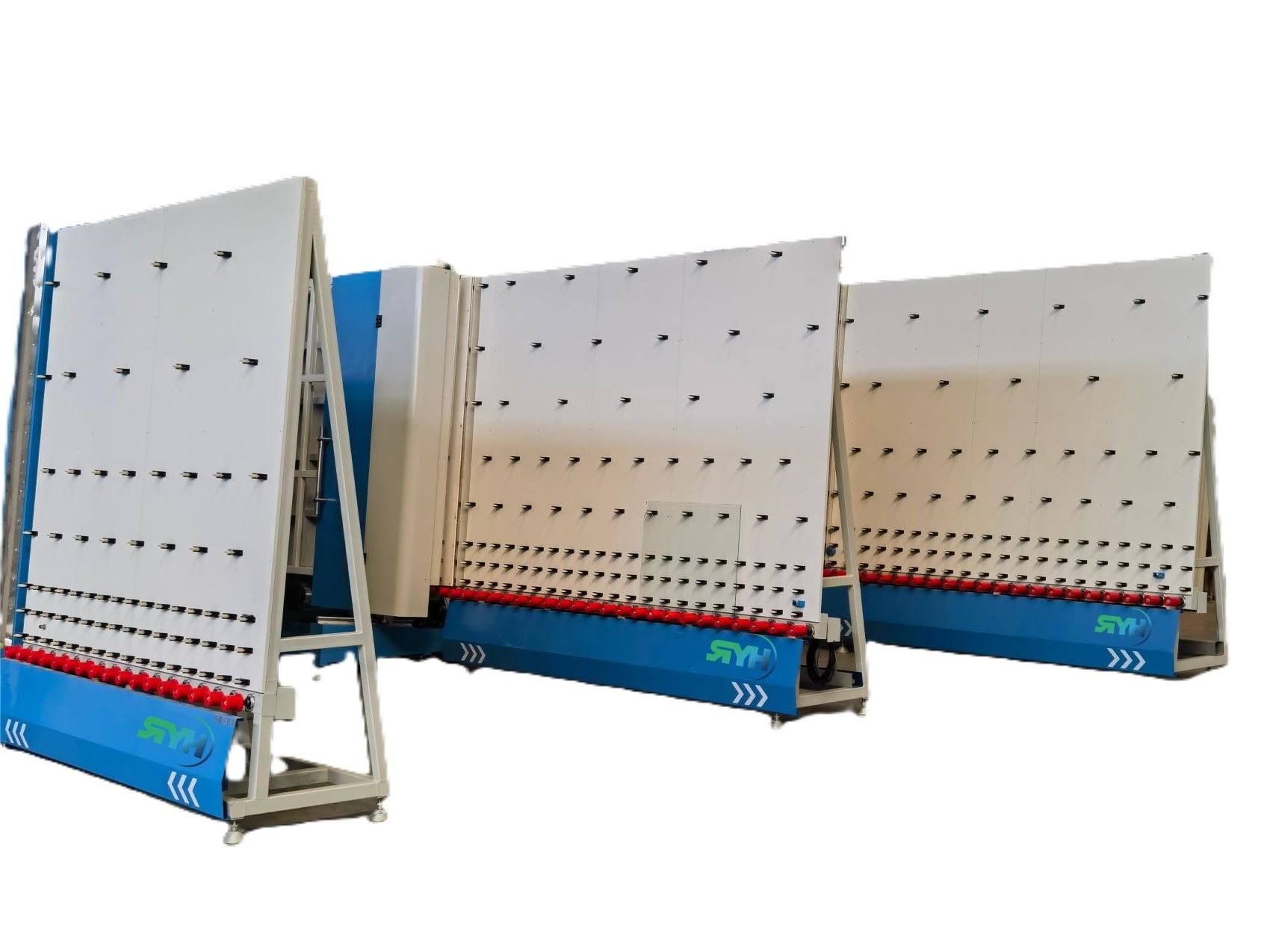

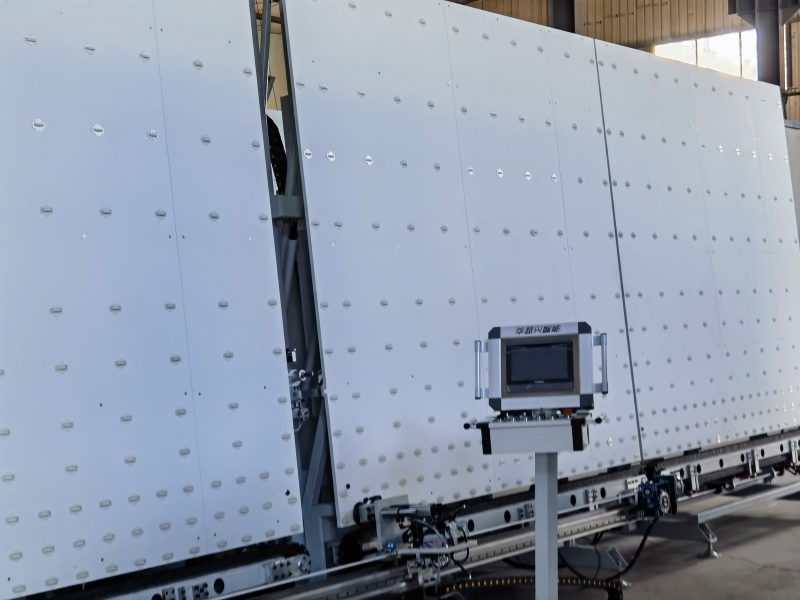

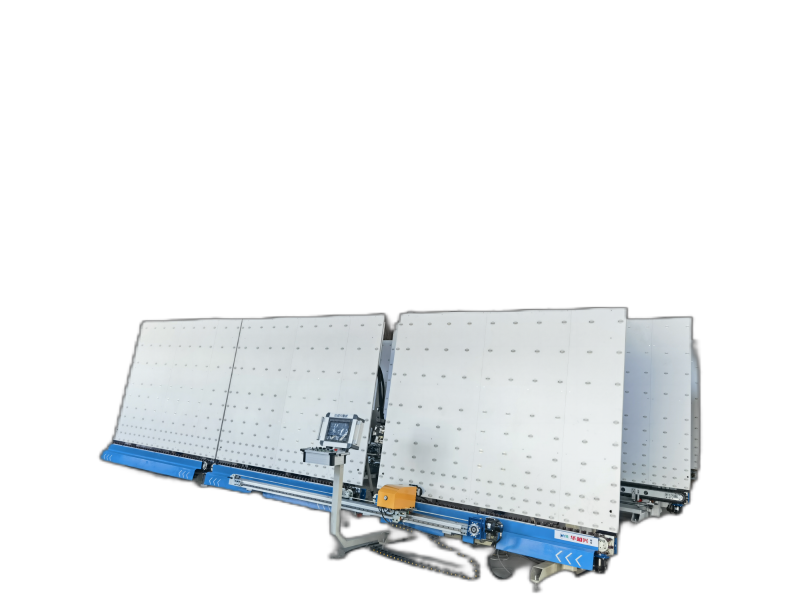

Digital Control Vacuum Glass Sealing Machine

MAIN FEATURES

1. Can achieve a variety of sizes of rectangular insulating glass glue continuity, glue efficiency is high, stable quality; The third section can pre-store glass to strengthen the continuity of equipment operation and improve production efficiency;

2. The common function is the button switch design, the operation is simpler, convenient to train employees, the detailed parameters can be operated by the touch film screen; The edges are coated with glue and no bubbles, and the corners are full without manual trimming;

3. The world famous brand servo control system, stable performance;

4. Accurate synchronous belt transmission system, to ensure the smooth running of glass without adhesive;

5. Unique glue amount automatic alarm device and automatic glue discharge function.


Contact Now E-Mail Telephone WhatsApp
Product Details

Distinctive Capabilities of the Insulating Glass Sealing Machine:

1. Versatile Size Application: The machine is designed to continuously apply glue to insulating glass in multiple rectangular dimensions, ensuring high efficiency and consistent quality in the gluing process. The inclusion of a pre-storage section for glass in the third module enhances operational continuity and enhances production throughput.

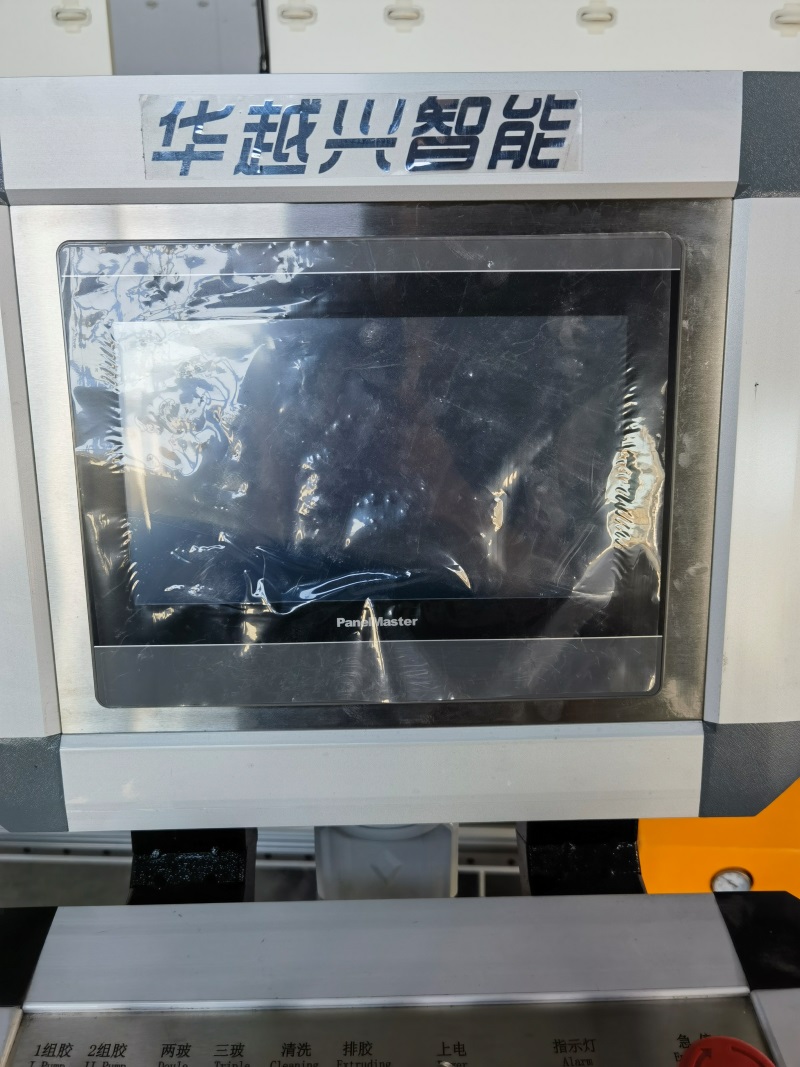

2. User-Friendly Interface and Precision Gluing: The machine's common functions are accessed via a simple button switch design, streamlining operation and simplifying employee training. The touch film screen allows for easy adjustment of parameters. The machine ensures bubble-free glue application along the edges and complete corner coverage, eliminating the need for manual trimming.

3. Premium Control System: The machine is equipped with a servo control system from a globally renowned brand, ensuring stableand robust performance.

4. Seamless Glass Handling: An precise synchronous belt transmission system is utilized to guarantee the glass moves flawlessly without any adhesive interference, maintaining the integrity of the glass.

5. Innovative Glue Management: The machine features a unique automatic alarm system for monitoring glue levels and an automatic glue discharge function, which are designed to optimize the gluing process and prevent downtime.



TECHNICAL   PARAMETERS

Voltage

3P/380V/50Hz

Insulating glass thickness

12-60mm

Total power

13KW

Coating depth

3-15mm

Transfer speed

0-50m/min

Aluminum frame width

6-27mm

Min.glass. size

300×180mm

Coating rate

5-40m/min



Max.Glsss. Size

2000×2500mm

Hydraulic pressure

<100kg/cm²

Overall dimension

8340×2500×2850mm

Air source

0.6-0.8MPa

Digital Control Vacuum Glass Sealing MachineDigital Control Vacuum Glass Sealing Machine

Digital Control Vacuum Glass Sealing Machine


Currently, our offerings are shipped to a diverse range of international markets including the United States, Kazakhstan, South Korea, Singapore, Thailand, Vietnam, the Philippines, Australia, the United Arab Emirates, South Africa, and India, where they have garnered a global standing. Looking forward to doing business with you.
