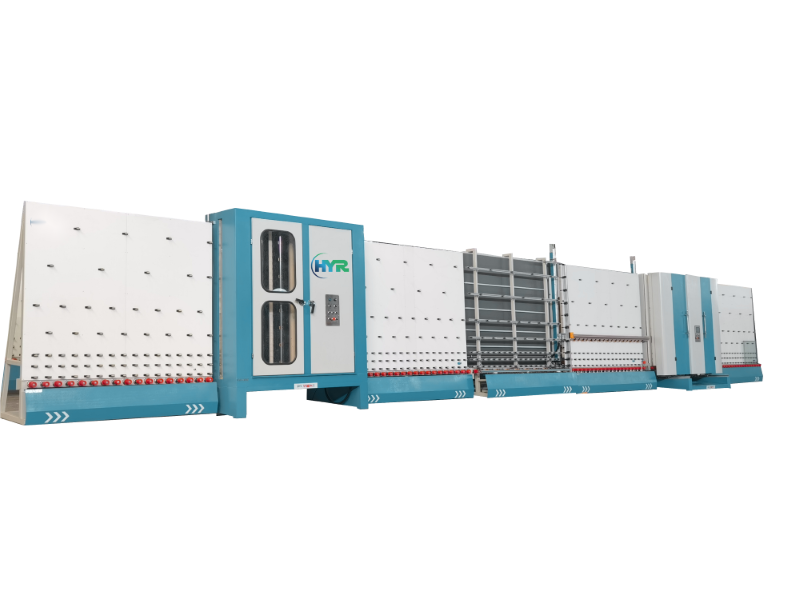

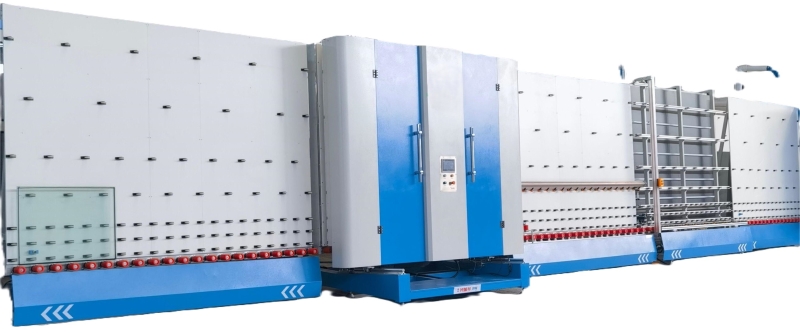

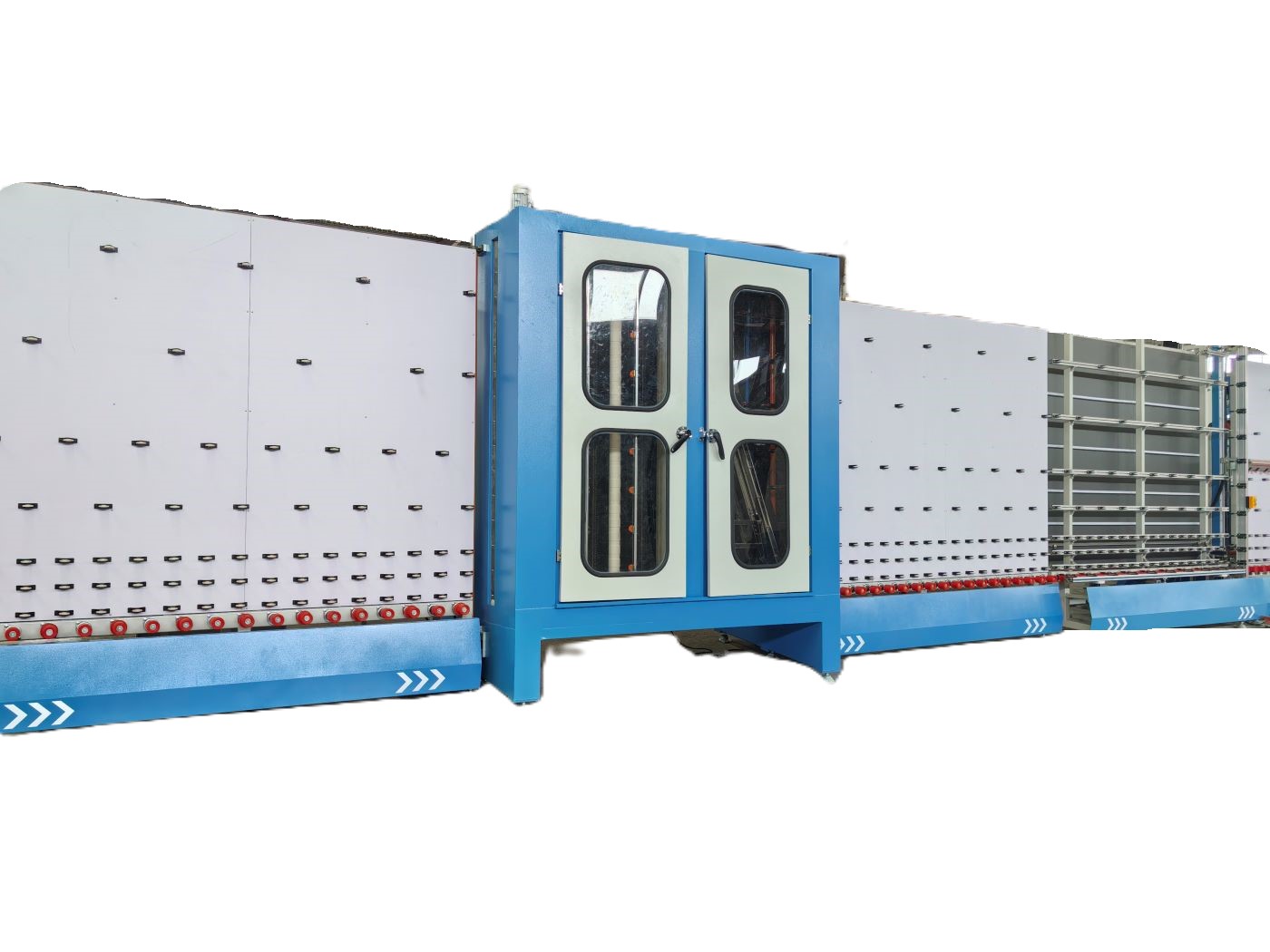

Insulated Glass Production Line for Double Glazing

Key Features:

- The washing area is constructed with stainless steel and anti-corrosive materials, featuring three sets of independently operable brushes with adjustable spacing, all controlled by a CNC automation program.


- Capable of processing double and triple hollow glass, as well as extended glass, with the option for secondary plate pressing. The machine offers both automatic and manual operation modes for user convenience.

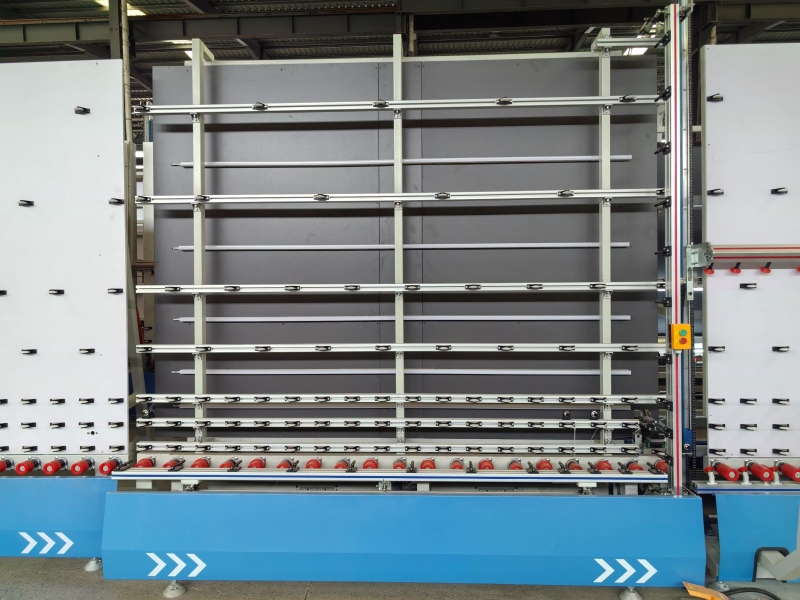

- Plate pressing technology includes proprietary point adjustment and an automatic plate pressure maintenance function for consistent performance.


- The hot air circulation drying section accelerates the cleaning process and minimizes noise by ensuring the glass dries quickly. It utilizes high-density soft brushes suitable for cleaning various types of LOW-E and coated glass.


- The machine is fitted with a sophisticated intelligent cleaning system for enhanced efficiency.


- The direction of the device can be customized based on the glass travel direction, allowing for forward or reverse movement.


- The equipment can be customized with an on-board inflation function, available in PW-C (external closure inflation) and PW (external closure) models.


Contact Now E-Mail Telephone WhatsApp
Product Details

Key Features:
The washing location is built with stainless steel and anti-corrosive materials, offering three units of independently operable brushes with adjustable spacing, all managed by way of a CNC automation program.


Capable of processing double and triple hole glass, as nicely as prolonged glass, with the choice for secondary plate pressing. The computer presents each computerized and guide operation modes for consumer convenience.


Plate urgent technological know-how consists of proprietary factor adjustment and an automated plate strain renovation feature for steady performance.


The warm air circulation drying area hurries up the cleansing method and minimizes noise with the aid of making sure the glass dries quickly. It makes use of high-density gentle brushes appropriate for cleansing a variety of kinds of LOW-E and lined glass.


The computing device is equipped with a state-of-the-art clever cleansing device for greater efficiency.


The route of the machine can be personalized primarily based on the glass journey direction, allowing for ahead or reverse movement.


- The tools can be personalized with an on-board inflation function, handy in PW-C (external closure inflation) and PW (external closure) models.


Insulated Glass Production Line for Double GlazingInsulated Glass Production Line for Double Glazing


Insulated Glass Production Line for Double GlazingInsulated Glass Production Line for Double Glazing


Technical Parameters

Voltage

3P/380V/50Hz

Maximum glass size

2000×2500mm

Total power

28KW

Maximum thickness of insulating glass

60mm

Washing speed

0-13m/min

Air consumption

1m³/min

Maximum working speed

50m/min

Dimension

18200×2800×2920mm

Minimum glass size

300×450mm
