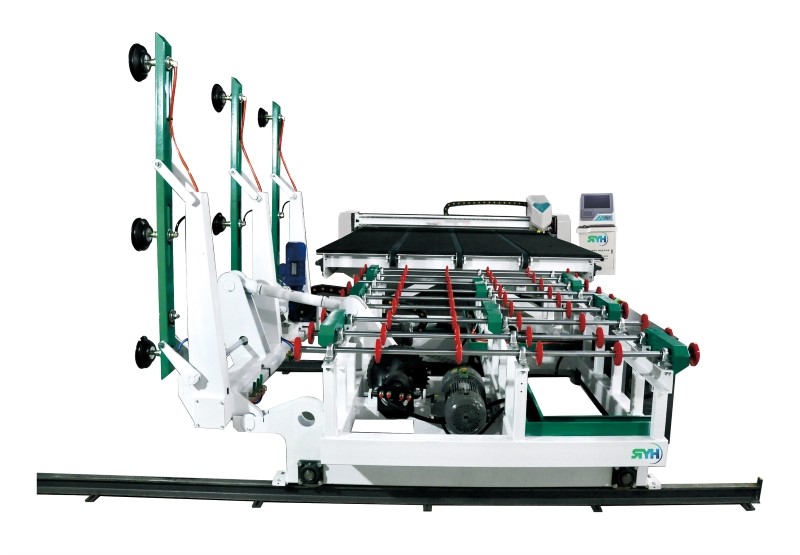

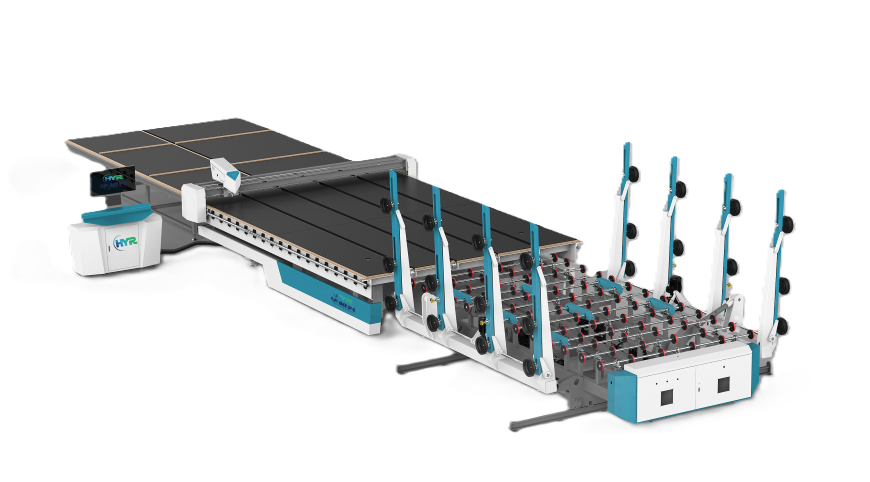

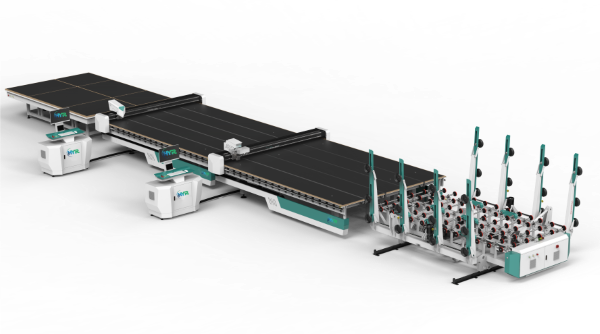

Integrated Single-Side Book Glass Cutting Production Line
Product performance
The design draws on the concept of German Industry 4.0, and realizes the automatic cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stability
Qualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding after aging treatment, good physical properties can be matched with bilateral grinding, four-edge grinding line production, glass does not fall, improve work efficiency.
Product Functionality:
1. German Industry 4.0-Inspired Design: The smart glass cutting machine is designed to embody the advanced principles of German Industry 4.0, integrating an automated cutting process, data integration, and intelligent operation.
2. Durable and Stable Frame: The machine's frame is constructed using advanced bridge steel technology, which is welded and then aged to enhance its strength and stability. This robust frame is precision-milled with a gantry mill, ensuring exceptional strength and stability.
3. High-Manganese Steel Frame: The frame is fabricated from high manganese steel, renowned for its exceptional strength and resistance to deformation. After welding, the frame undergoes aging treatment to further optimize its physical properties. This treatment allows for the implementation of bilateral grinding and four-edge grinding line production, ensuring that the glass remains secure during the cutting process and significantly improving work efficiency.
Application Range:
The smart glass cutting machine is suitable for a wide range of applications, including:
Building, central control doors and Windows, automobiles, home appliances, kitchenware, bathroom, solar energy, coating, mirror, handicrafts and other glass
Technical Reference
Model | ACCURACY | APEED | MAX CUTTING SIZE | THICKNESS | POWER | POWER SUPPLY |
14033 | ≤±0.20mm/m | 0-220m/min | 14000mm×3300mm | 3-19mm | 70kw | 380v/50HZ |
6137 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
6133 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
5133 | ≤±0.20mm/m | 0-220m/min | 5100mm×3300mm | 3-19mm | 25kw | 380v/50HZ |
4228 | ≤±0.20mm/m | 0-220m/min | 4200mm×2800mm | 3-19mm | 18kw | 380v/50HZ |
2621 | ≤±0.20mm/m | 0-220m/min | 2600mm×2100mm | 3-19mm | 12kw | 380v/50HZ |
Remark :Special sizes can be customized |
