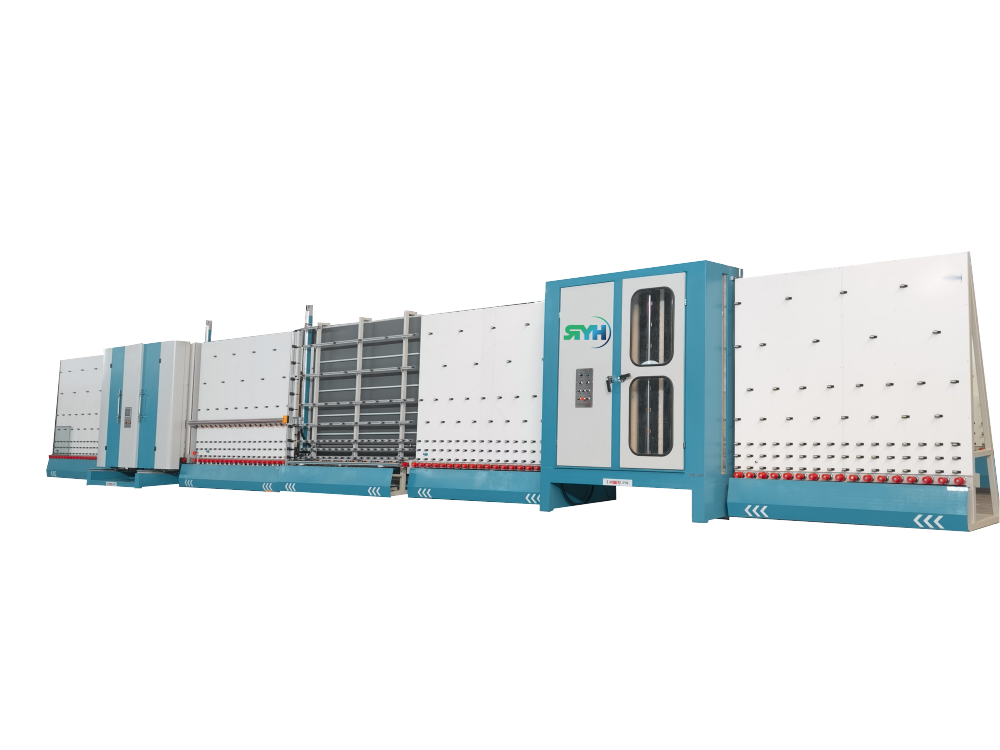

Robotic Vertical Automatic Sealing Machine for Glass Lines

MAIN FEATURES

1. Vertical Automatic Sealing Machine Can achieve a variety of sizes of rectangular insulating glass glue continuity, glue efficiency is high, stable quality;

The machine is composed of 4 sections, the first section can pre-store a piece of glass, the fourth section can wait for the film, the efficiency is 20% higher than other manufacturers;

2. The common function is the button switch design, the operation is simpler, convenient to train employees, the detailed parameters can be operated by the touch film screen;

3. The side of the glue filled no bubbles, full corner, no manual trimming;

4. The world famous brand servo control system, stable performance;

5. Accurate synchronous belt transmission system to ensure the smooth running of glass without adhesive;

6. Unique glue amount automatic alarm device and automatic glue discharge function.

7. Can be customized according to customer requirements, reverse and various sizes of equipment.

8. The inlet and outlet are made of all-aluminum structure, waterproof, more durable


Contact Now E-Mail Telephone WhatsApp
Product Details

MAIN FEATURES
1. Vertical automatic sealing machine can reap a range of sizes of rectangular insulating glass glue continuity, glue effectivity is high, steady quality;
The computer is composed of four sections, the first area can pre-store a piece of glass, the fourth part can wait for the film, the effectivity is 20% greater than different manufacturers;

2. the frequent feature is the button change design, the operation is simpler, handy to teach employees, the particular parameters can be operated via the contact movie screen;
3. the facet of the glue crammed no bubbles, full corner, no guide trimming;
4. the world well-known company servo manipulate system, steady performance;
5. correct synchronous belt transmission device to make sure the clean walking of glass except adhesive;
6. special glue quantity computerized alarm machine and automated glue discharge function.
7. can be custom-made in accordance to consumer requirements, reverse and a range of sizes of equipment.
8. The inlet and outlet are made of all-aluminum structure, waterproof, extra durable

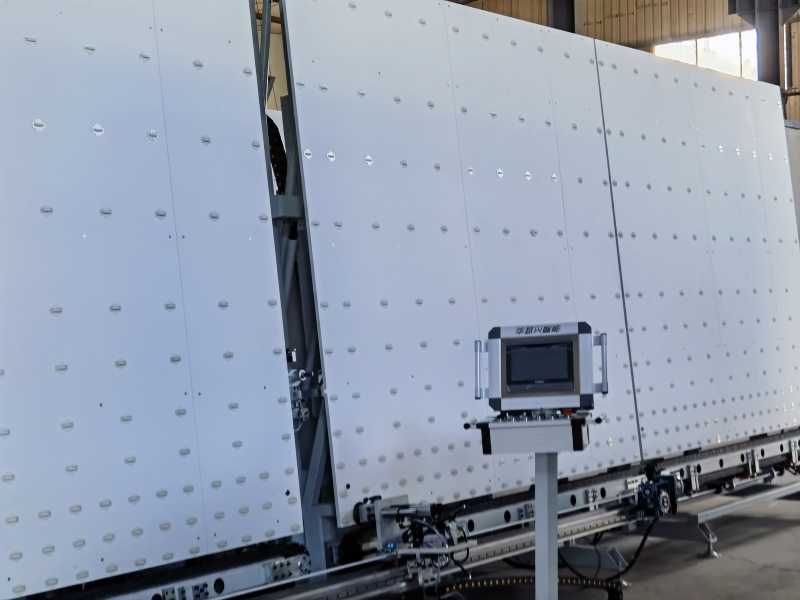

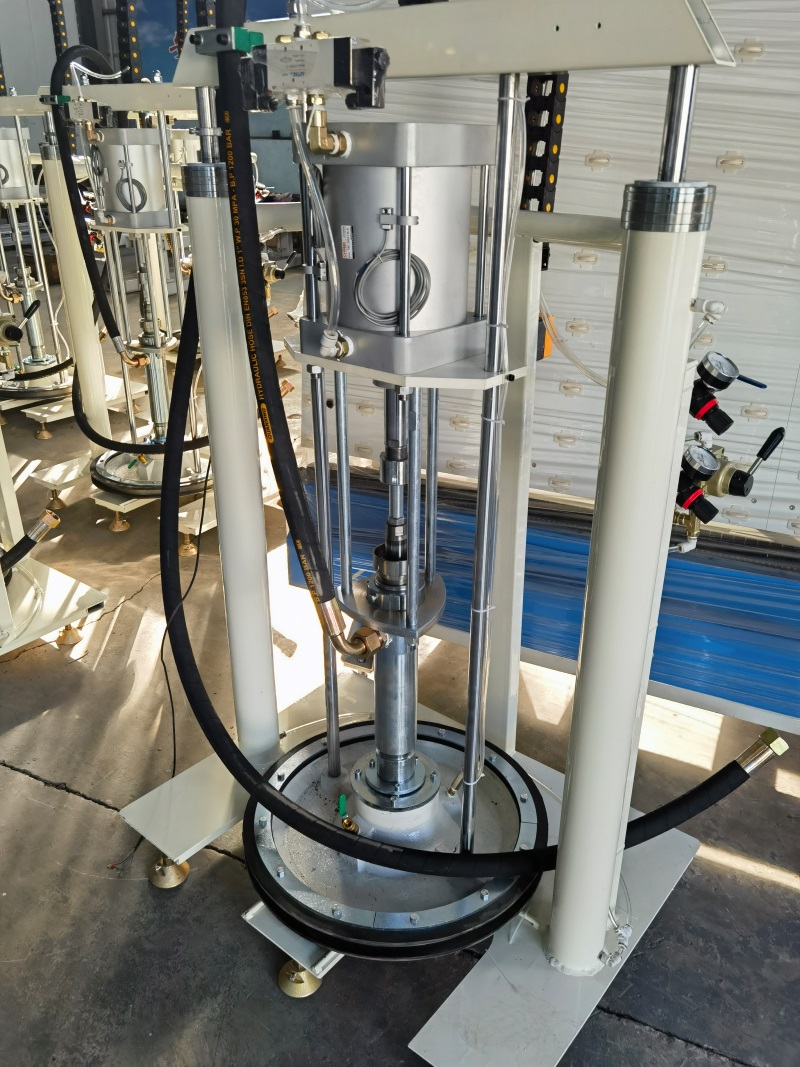

Robotic Vertical Automatic Sealing Machine for Glass LinesRobotic Vertical Automatic Sealing Machine for Glass Lines

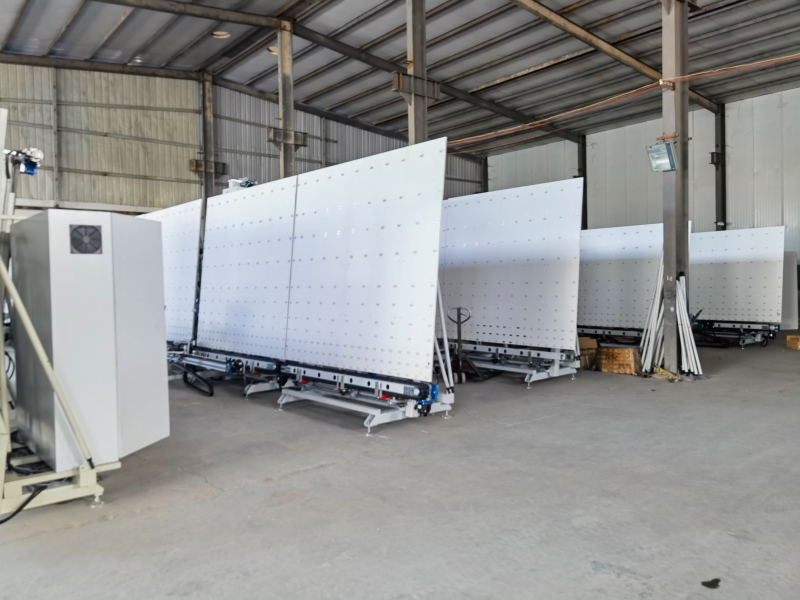

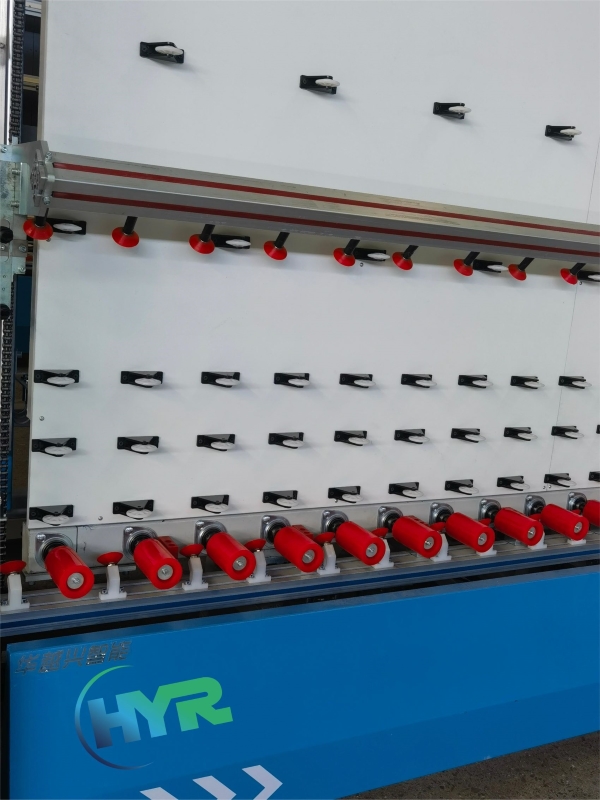

Robotic Vertical Automatic Sealing Machine for Glass LinesRobotic Vertical Automatic Sealing Machine for Glass Lines

TECHNICAL   PARAMETERS

Voltage

3P/380V/50Hz

Insulating glass thickness

12-60mm

Total power

14KW

Coating depth

3-15mm

Transfer speed

0-50m/min

Aluminum frame width

6-27mm

Min.glass. size

300×180mm

Coating rate

5-40m/min



Max.Glsss. Size

4000×2500mm

Hydraulic pressure

<100kg/cm²

Overall dimension

11250×2500×3350mm

Air source

0.6-0.8MPa
