Secondary Window Insulation Production Line

MAIN FEATURES

Wash area and wash areas ucing stainless steel and corrosion-resistant materials,three pairs of independent operation brush,brush spacing is adjustable,using CNC automation program runs;

1. Can produce double glass and three glass hallow glass,long glass,long glass can be secondary plate pressure; Automatic or manual operation,easy to operate;

2. Plate pressure with exclusive point adjustment technology,and with automatic plate precsure maintenance function;

3. Circulating hot air drying section,improve the cleaning speed,making it dry reduce noise; All use high-density soft brush,can clean all kinde of LOW-E glaos,coated glaos;

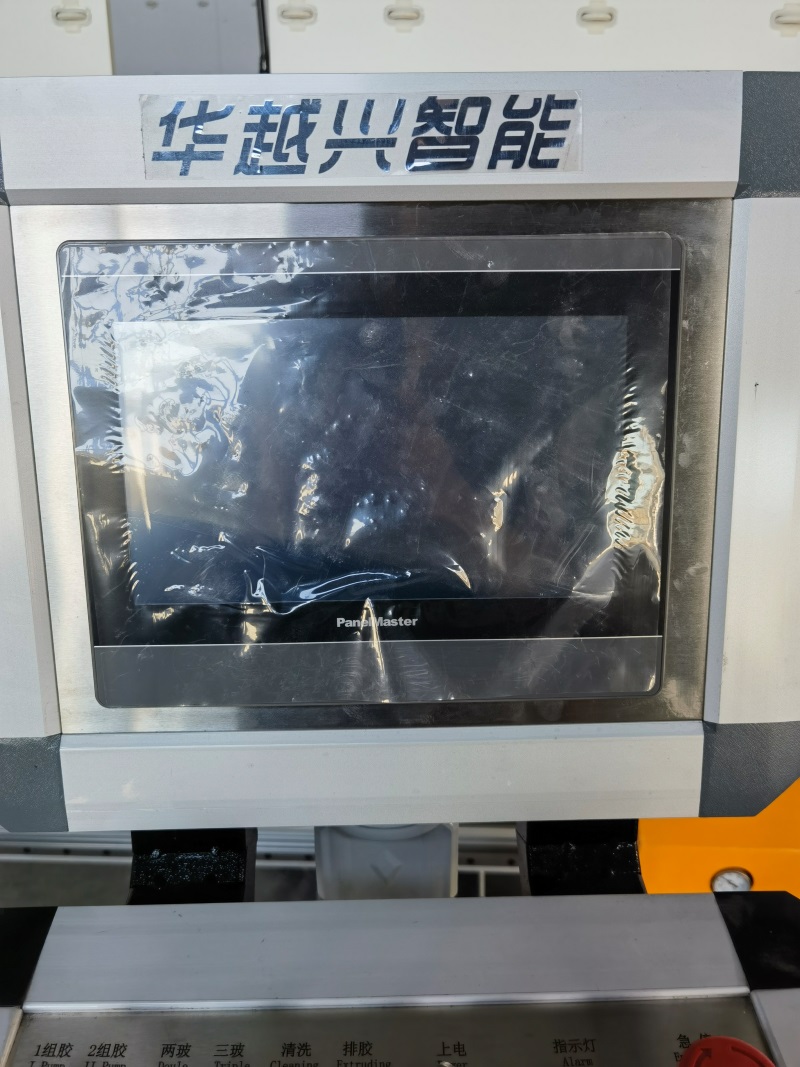

4. The machine is equipped with an advanced intelligent cleaning system;

5. Customizable forward and reverse direction of the device according to the direction of travel of the glass.

6. Customizable in board inflation function equipment,PW-C(external closuretinflation),PW(external closure).

Contact Now E-Mail Telephone WhatsApp

Product Details

Key Features:

1. Washing Zone Construction: Crafted from stainless metal and anti-corrosive materials, the washing location elements three units of brushes that function independently with adjustable spacing, all powered by way of CNC automation programming.

2. Glass Production Versatility: Capable of manufacturing double and triple glazed hole glass, as nicely as coping with lengthy glass panels, which can be similarly processed with secondary plate pressing. Offers each computerized and guide operation modes for consumer convenience.

3. Advanced Plate Pressing Technology: The plate urgent mechanism consists of proprietary factor adjustment science and an automated plate strain protection feature for precision and ease of use.

4. Efficient Drying System: The warm air circulation drying part enhances cleaning velocity whilst lowering noise, making sure a thorough drying process. The computing device is outfitted with high-density smooth brushes appropriate for cleansing quite a number sorts of LOW-E and lined glass.

5. Intelligent Cleaning: The computing device accommodates a state-of-the-art wise cleansing machine for most advantageous performance.

6. Customizable Movement: The device's tour course can be custom-made for ahead or reverse movement, aligning with the particular course of the glass.

7. Optional Inflation Features: The tools can be personalized to consist of a board inflation function, accessible in two configurations: PW-C (external sealed inflation) and PW (external sealed inflation).

Secondary Window Insulation Production Line

TECHNICAL PARAMETERS

Voltage	3P/380V/50Hz	Maximum glass size	2500×2500mm
Total power	32KW	Maximum thickness of insulating glass	60mm
Washing speed	0-13m/min	Air consumption	1.5m³/min
Maximum working speed	50m/min	Dimension	22400×2800×3480mm
Minimum glass size	300×450mm
