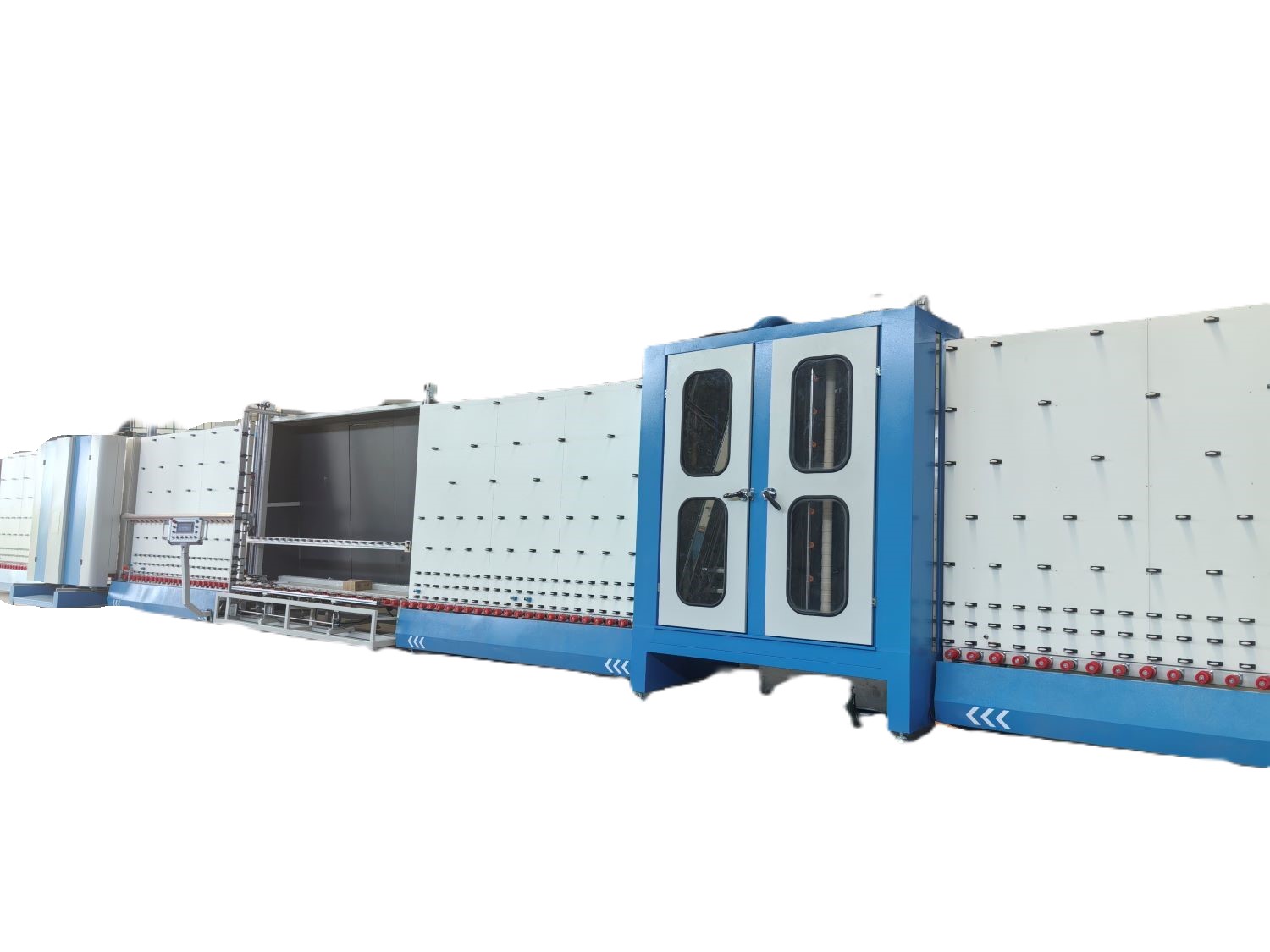

High Quality Automatic Insulating Glass Production Lines

Product Advantages:

Advanced Washing Technology:

Crafted from durable stainless steel and corrosion-resistant materials, the washing section boasts three sets of independently controlled brushes with adjustable spacing. These brushes are driven by CNC automated programming, ensuring precision and efficiency in the cleaning process.


Versatile Glass Production:

Designed for the production of double-glazed and triple-glazed insulating glass, the machine is adept at handling long glass panels. It offers the flexibility of both automatic and manual operation modes, catering to user preferences and varying production needs. The pressing plate employs a unique point adjustment technology, complemented by an automatic maintenance function for the pressing mechanism.


Efficient Drying and Intelligent Cleaning:

The inclusion of a circulating hot air drying section enhances cleaning efficiency, guarantees thorough drying, and keeps noise levels to a minimum. The machine is equipped with high-density soft brushes ideal for cleaning all types of LOW-E and coated glass. An advanced intelligent cleaning system is integrated to ensure peak performance. Additionally, the machine's travel direction is customizable, allowing for either forward or reverse operation to suit the glass's path. Customization options include a board inflation feature, available in PW-C and PW configurations, further enhancing the machine's versatility.


Contact Now E-Mail Telephone WhatsApp
Product Details

Product Details:

Key Features:

The washing section is made of stainless steel and corrosion-resistant materials, equipped with three sets of independently operable brushes that can be adjusted for spacing. These brushes are powered by CNC automated programming.

1.The machine is capable of producing double-glazed and triple-glazed insulating glass, and can handle long glass panels. It offers both automatic and manual operation modes for user convenience.

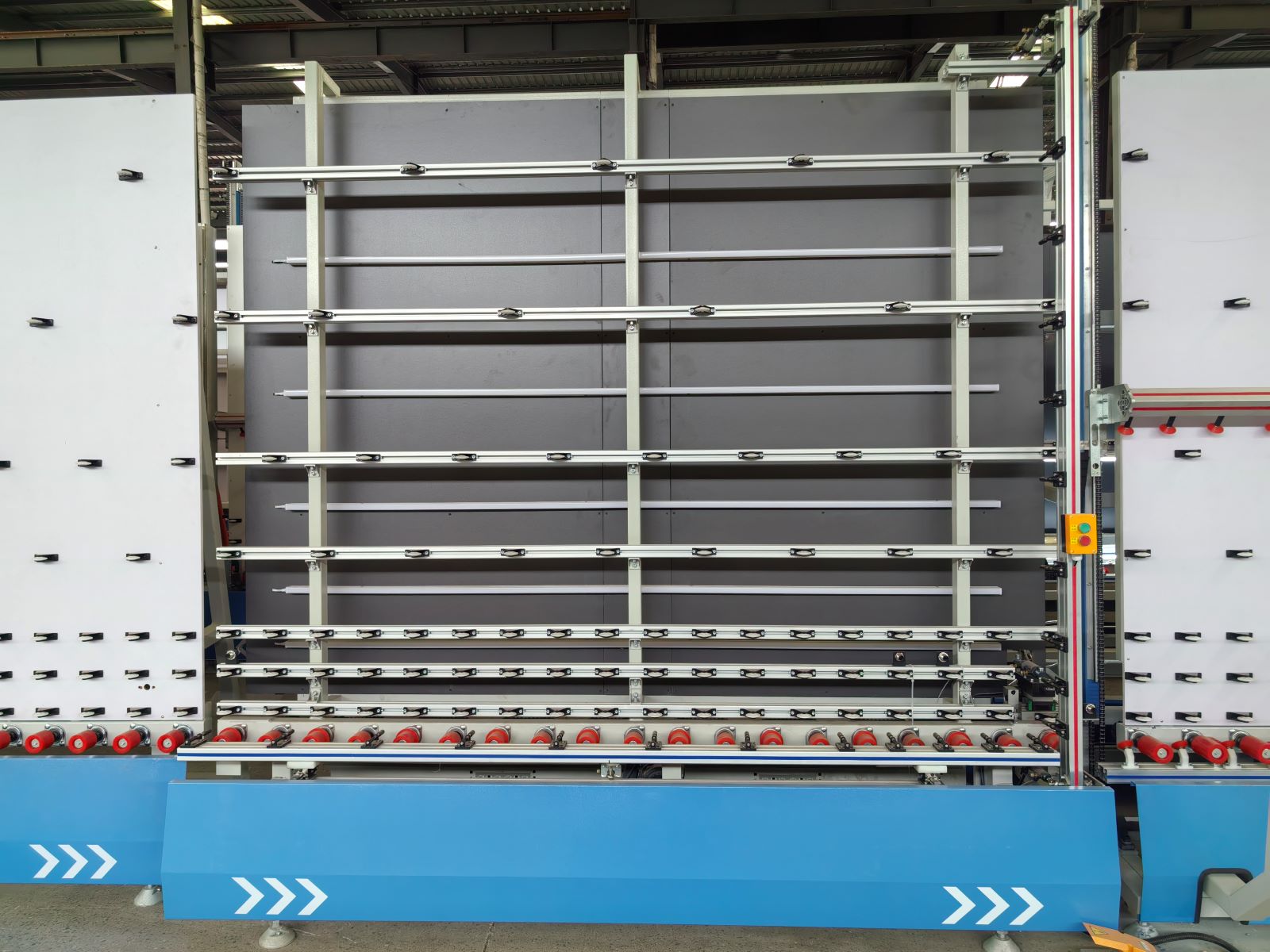

2.The pressing plate uses a proprietary point adjustment technology, and the pressing mechanism has an automatic maintenance function.

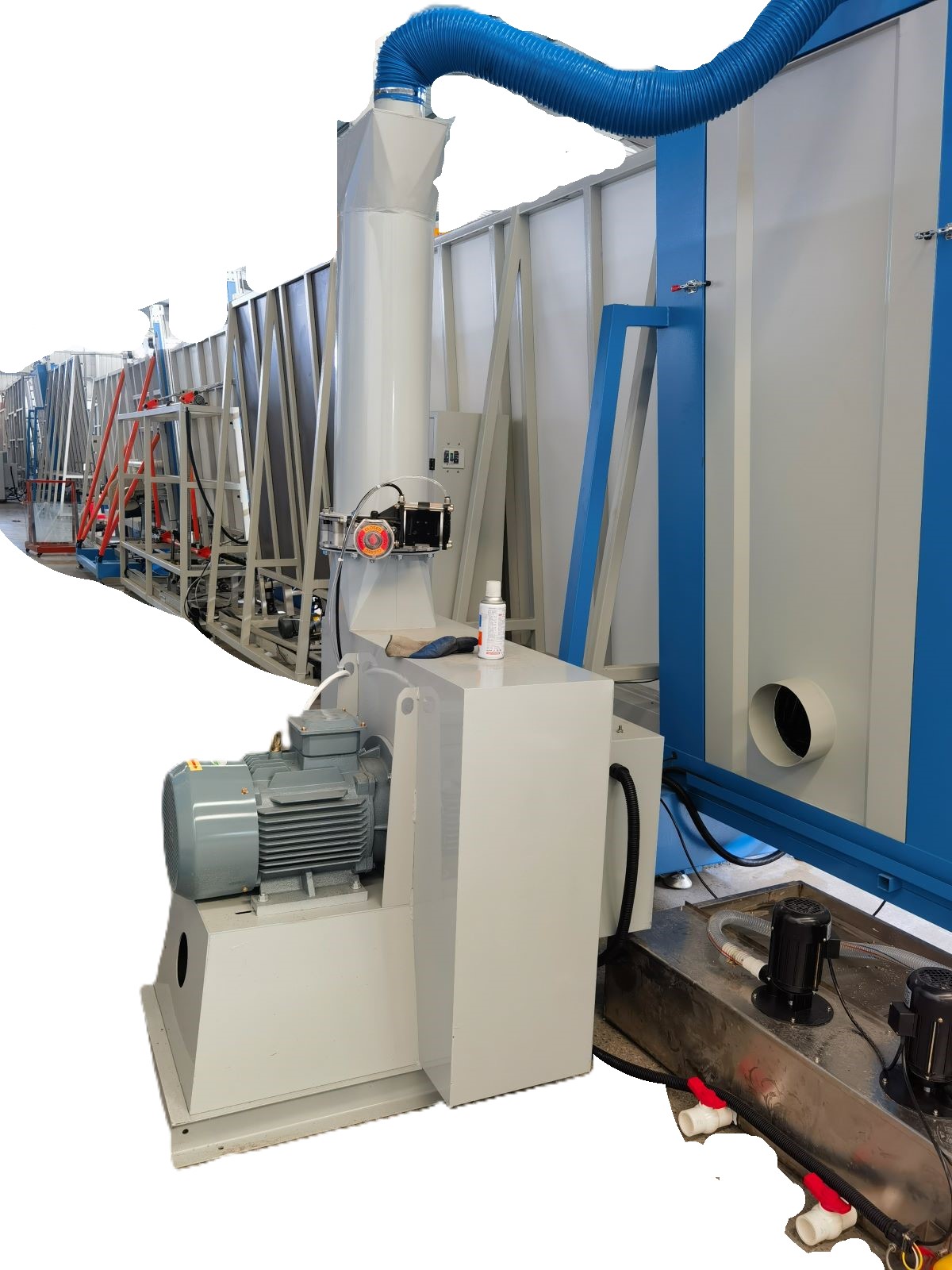

3.It features a circulating hot air drying section that improves cleaning efficiency, ensures complete drying, and reduces noise levels. It also uses high-density soft brushes that are suitable for cleaning all types of LOW-E and coated glass.

4.The machine incorporates an advanced intelligent cleaning system for optimal performance.

5.The direction of travel of the machine can be customized to facilitate either forward or reverse operation, accommodating the glass's path.

6.The equipment can be customized to include a board inflation feature, available in PW-C (with external sealed inflation) and PW (with external sealed) configurations.


Technical Parameters:



Voltage

3P/380V/50Hz

Maximum glass size

2000×2500mm

Total power

28KW

Maximum thickness of insulating glass

60mm

Washing speed

0-13m/min

Air consumption

1m³/min

Maximum working speed

50m/min

Dimension

18200×2800×2920mm

Minimum glass size

300×450mm
