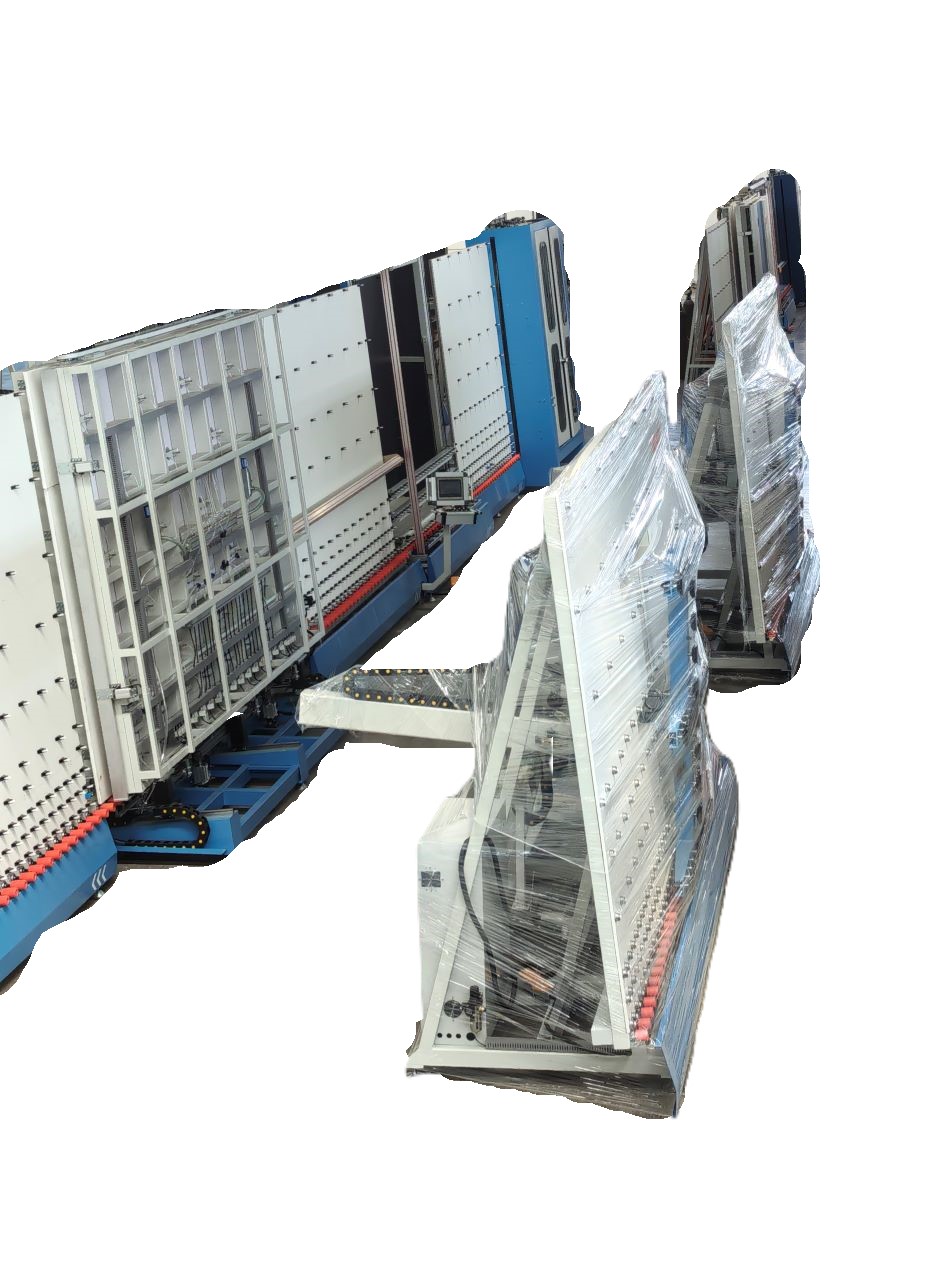

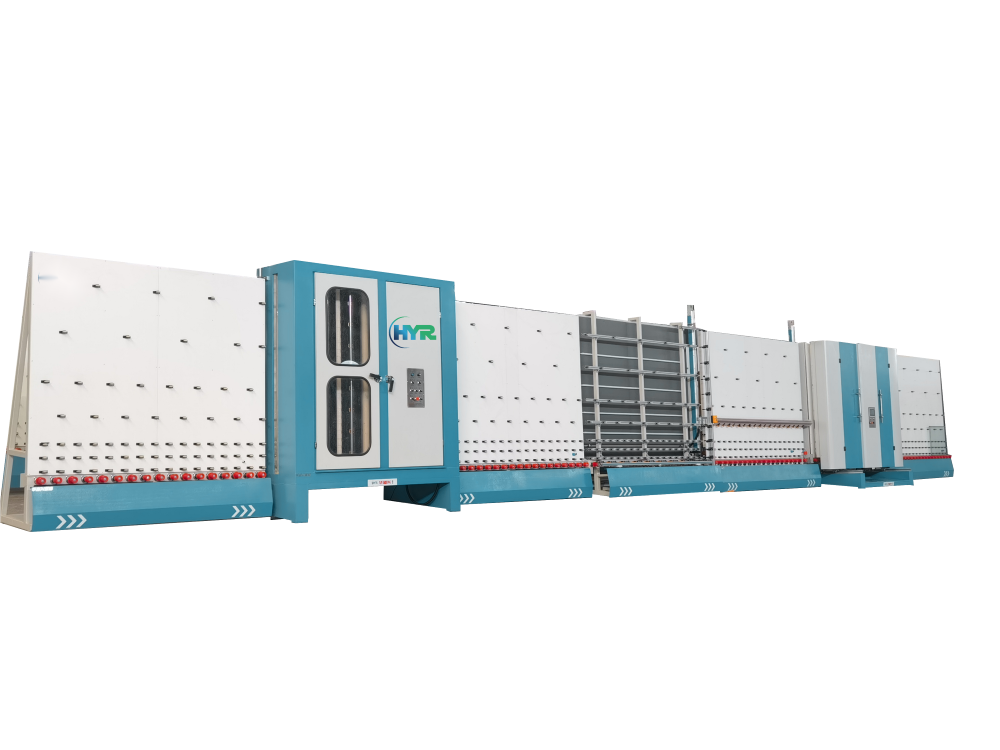

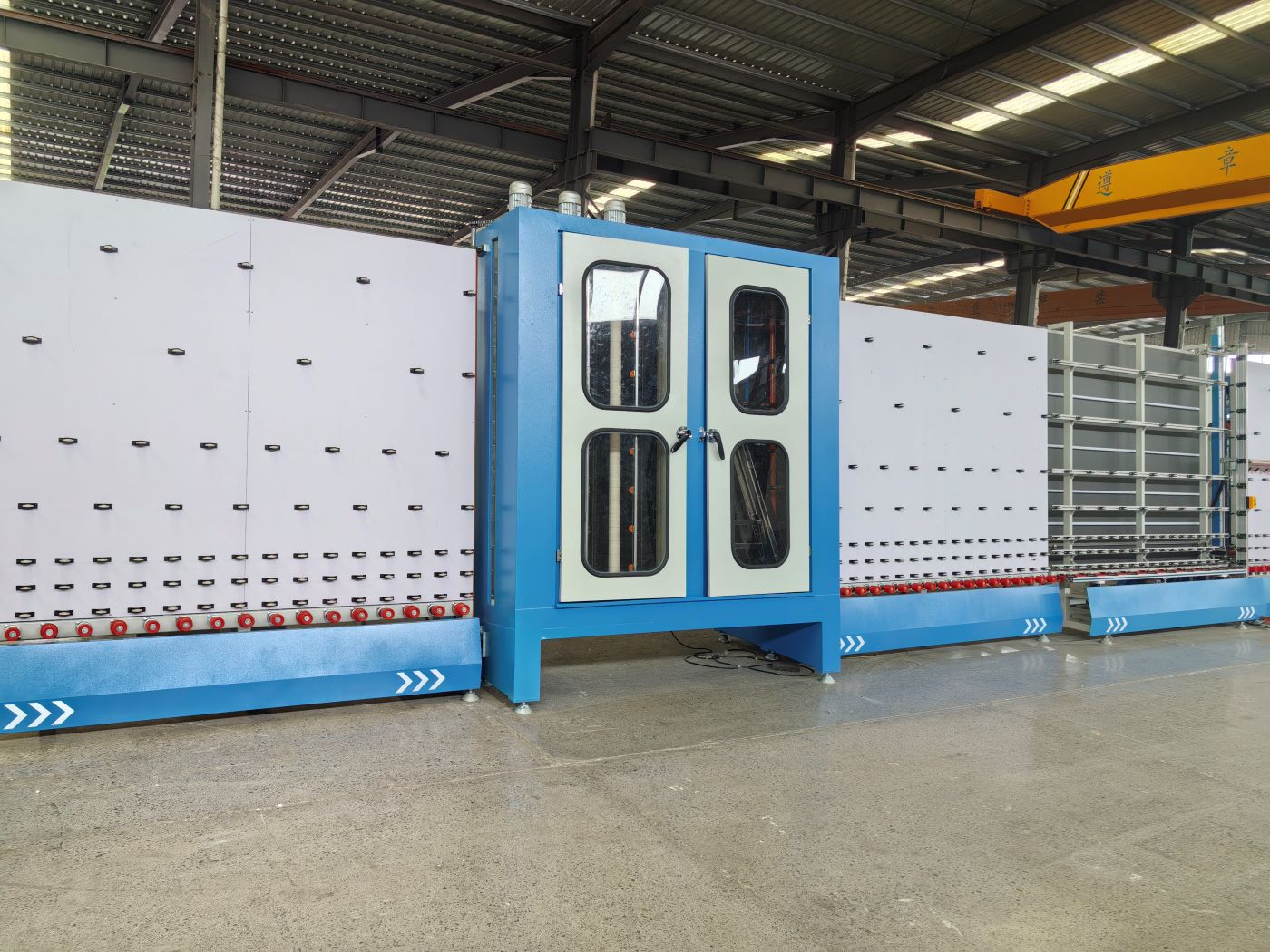

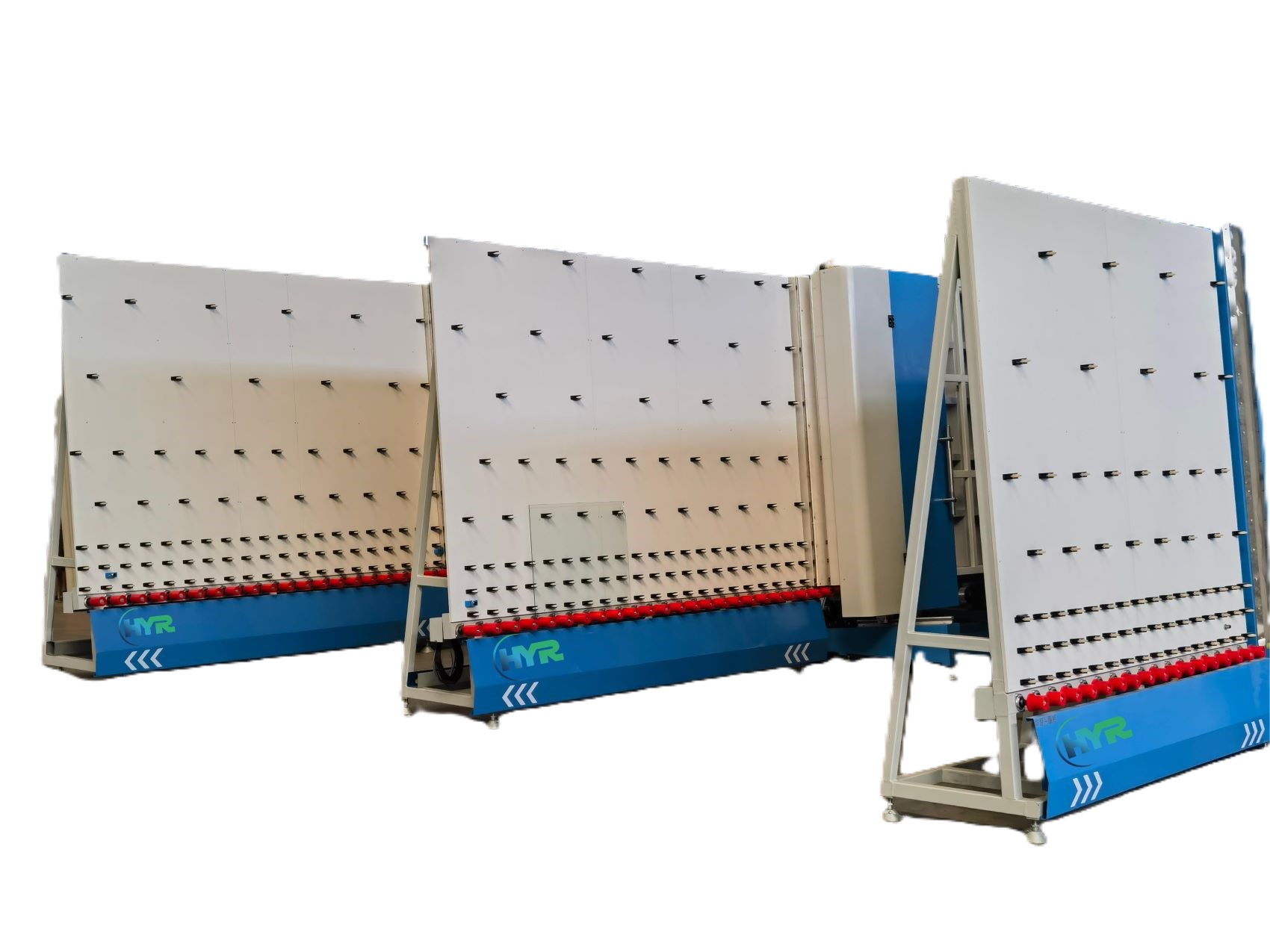

Insulating Glass Production line With Touch Screen

MAIN FEATURES:

Wash area and wash areas using stainless steel and corrosion-resistant materials, three pairs of independent operation brush, brush spacing is adjustable, using CNC automation program runs;

1.Can produce double glass and three glass hallow glass, long glass, long glass can be secondary plate pressure; Automatic or manual operation, easy to operate;

2.Plate pressure with exclusive point adjustment technology, and with automatic plate presure maintenance function;

3.Circulating hot air drying section, improve the cleaning speed, making it dry reduce noise; All use high-density soft brush, can clean all kind of LOW-E glasses, coated glasses;

4.The machine is equipped with an advanced intelligent cleaning system;

5.Customizable forward and reverse direction of the device according to the direction of travel of the glass.

Customizable in board inflation function equipment, PW-C(external closure inflation), PW(external closure).


Contact Now E-Mail Telephone WhatsApp
Product Details

Product Details:

1.Constructed with stainless steel and corrosion-resistant materials, the washing section features three sets of independently operable brushes with adjustable spacing, powered by CNC automated programming;

2.Capable of producing double-glazed and triple-glazed insulating glass, with the ability to repress long glass panels; Offers both automatic and manual operation modes for user convenience;

3.Utilizes a proprietary point adjustment technology for the pressing plate, along with an automatic maintenance function for the pressing mechanism;

4.Equipped with a circulating hot air drying section that enhances cleaning efficiency, ensures thorough drying, and minimizes noise levels; Employs high-density soft brushes suitable for cleaning all types of LOW-E and coated glass;

5.Incorporates an advanced intelligent cleaning system for optimal performance;

6.The machine’s direction of travel can be customized to facilitate either forward or reverse operation, accommodating the glass’s path;

7.The equipment can be tailored to include a board inflation feature, available in PW-C (with external sealed inflation) and PW (with external sealed) configurations.

Insulating Glass Production line With Touch Screen


TECHNICAL PARAMETERS:

Voltage

3P/380V/50Hz

Maximum glass size

2000×2500mm

Total power

28KW

Maximum thickness of insulating glass

60mm

Washing speed

0-13m/min

Air consumption

1m³/min

Maximum working speed

50m/min

Dimension

18200×2800×2920mm

Minimum glass size

300×450mm




If you want to learn more about our products, feel free to contact us.
