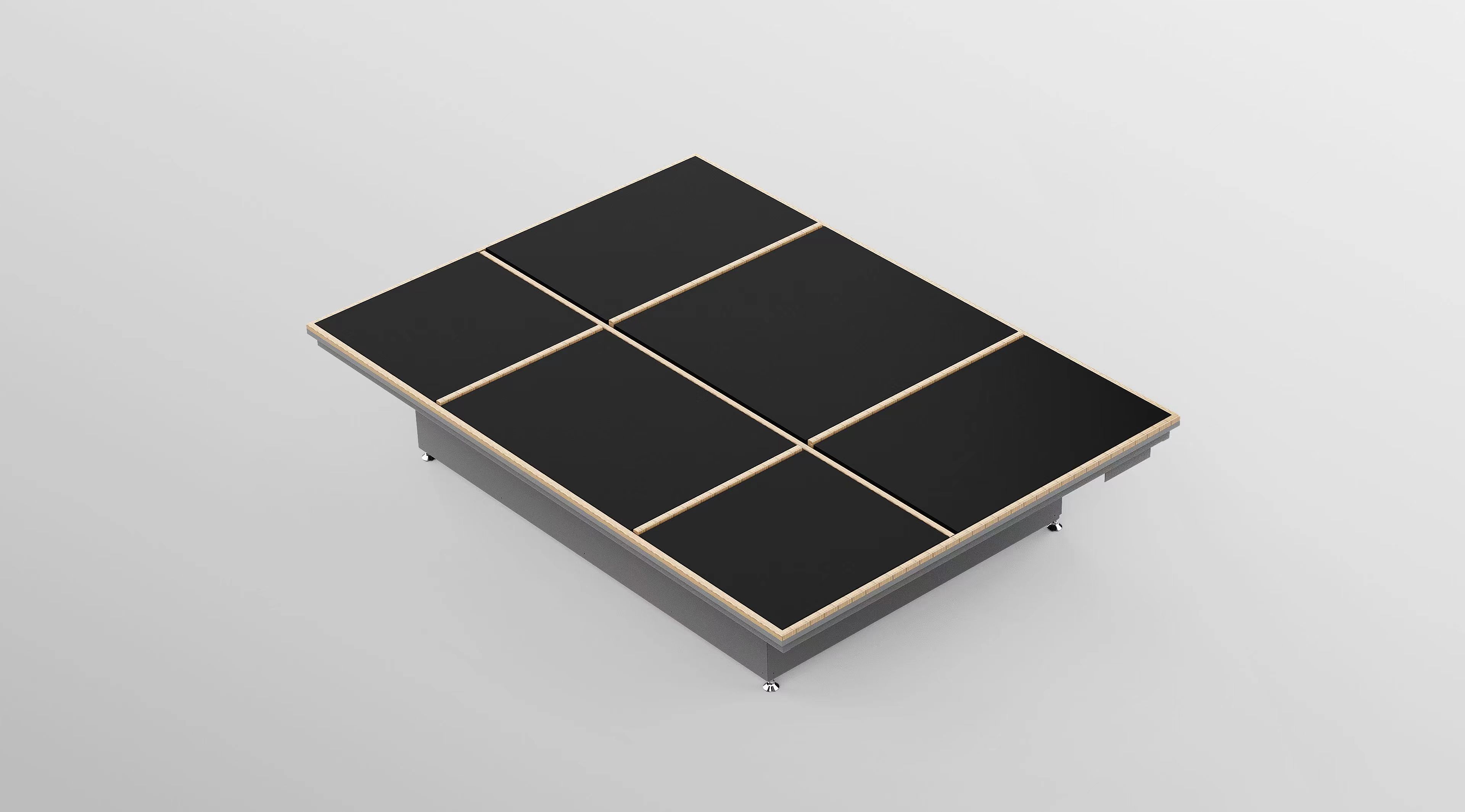

Large Intelligent Automatic Low-E Glass Cutting Machine

Fundamental operation concept:

The underlying mechanism involves the conveyance of cut glass to the workbench via a conveyor belt. The glass's location is automatically detected using a photoelectric scanning system. Subsequently, the servo motor within the film removal apparatus activates the gear mechanism, facilitating a full 360° rotation of the grinding wheel. The servo motor, which is directly linked to the grinding wheel, powers its rotation to effectively strip the film. The system then traverses in the X and Y directions, utilizing the cutting head of the diamond cutter wheel on the cutter box to remove the film and to trim the substrate.

Composition of the equipment's mechanism:

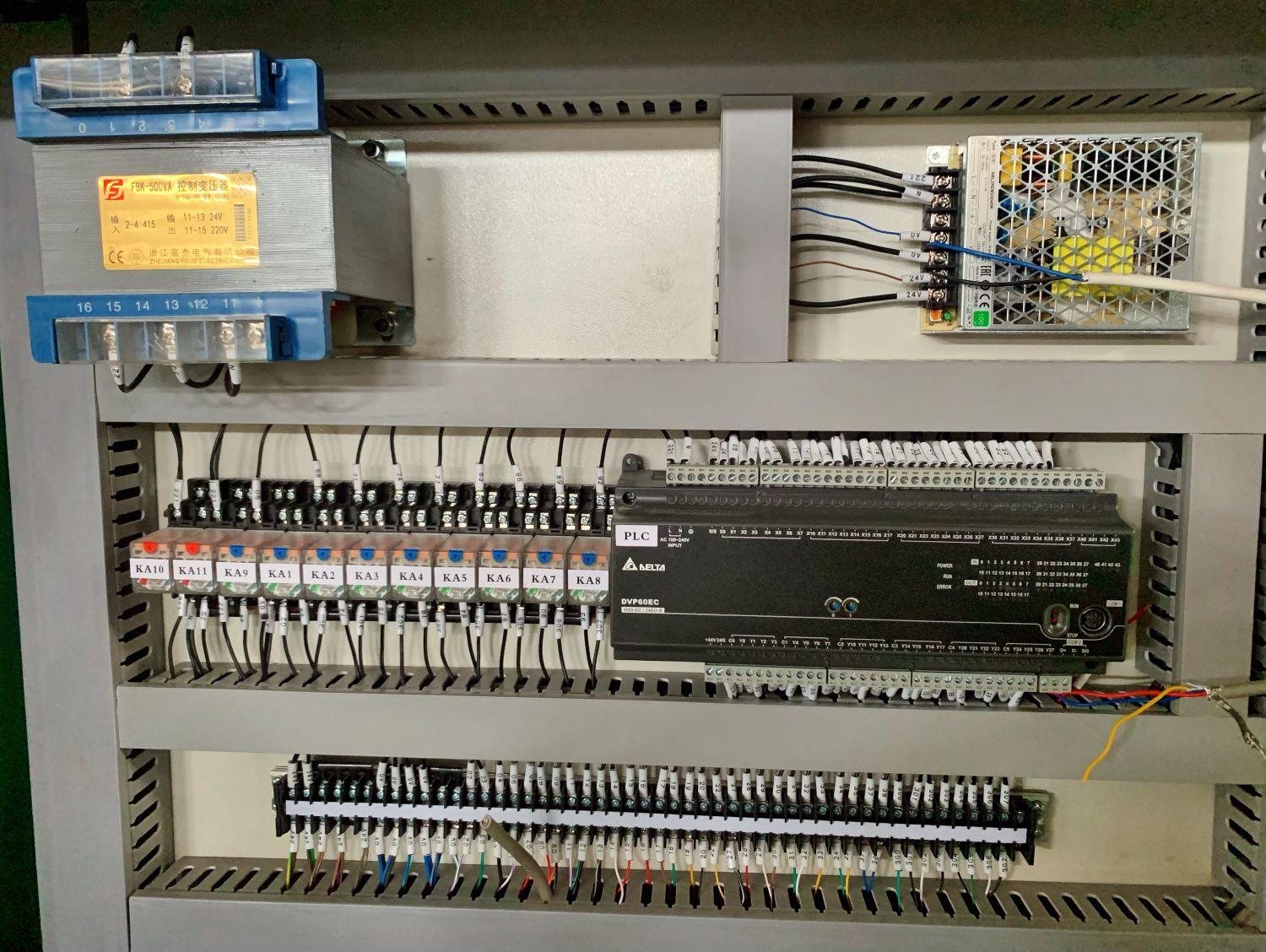

The automatic cutting machine is structured from the following components: a frame mechanism, a beam mechanism, a table mechanism, a tool head mechanism, a film removal device, a grinding wheel device, a conveying mechanism, a photoelectric scanning positioning mechanism, and an electrical control system.
