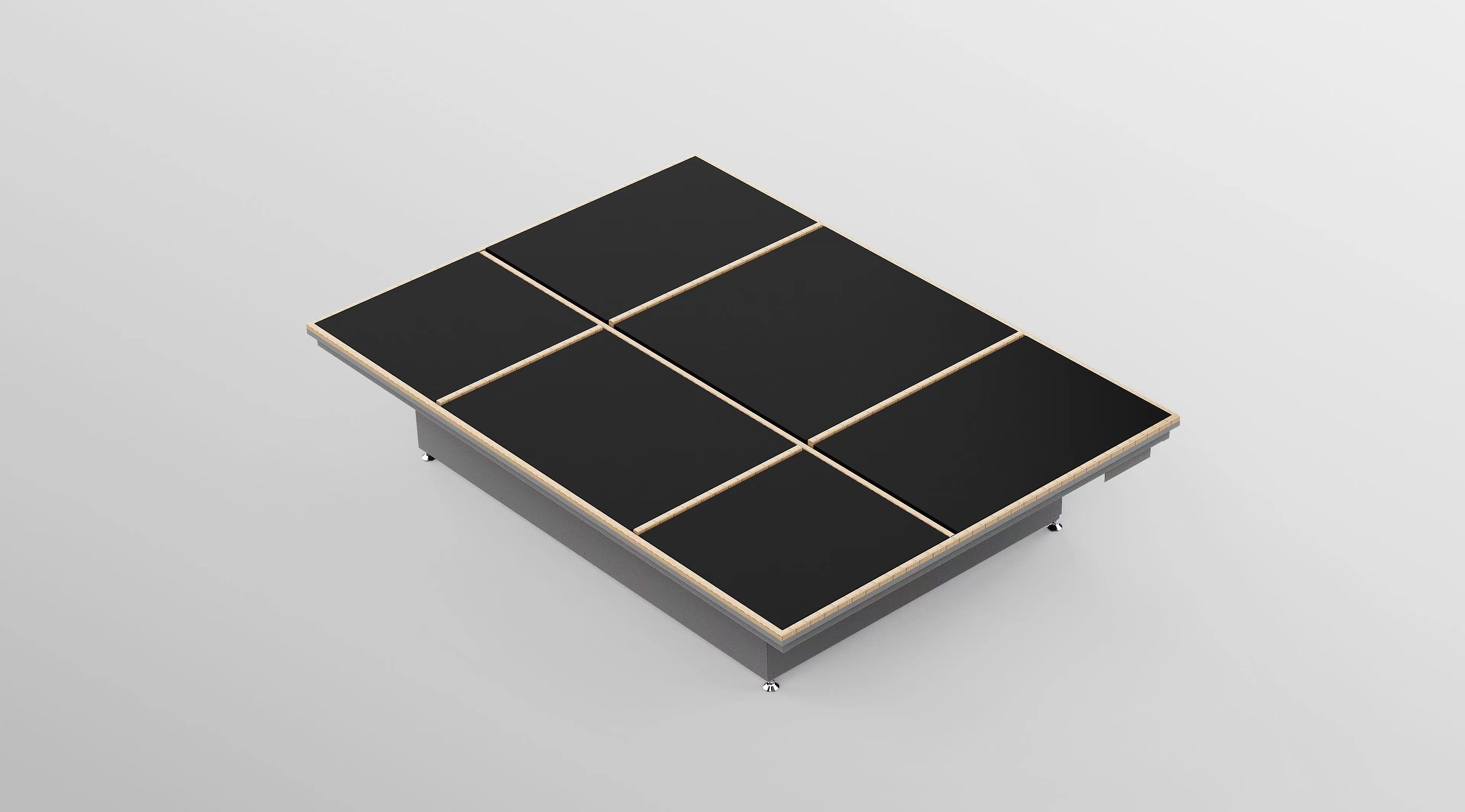

Glass Cutting Table
The design draws on the concept of Industry 4.0, and realizes the automation of the on-chip cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stabilityQualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding through aging treatment, good physical properties to improve work efficiency.

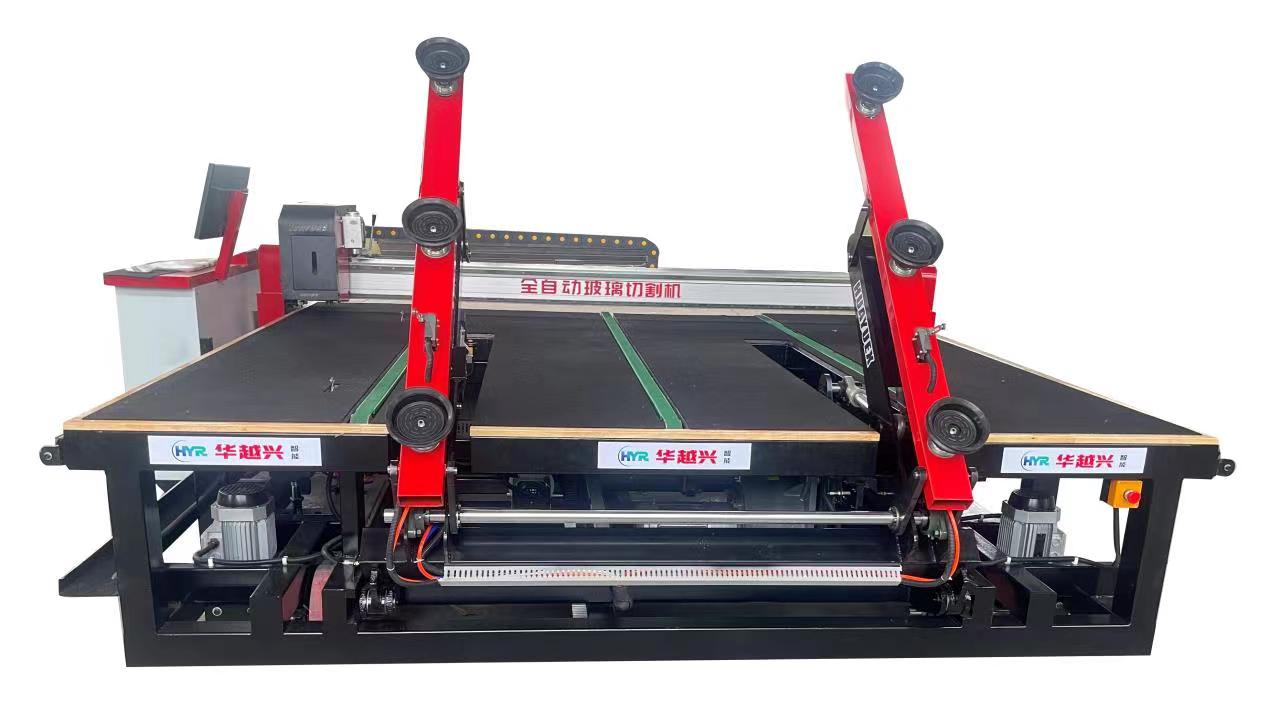

Functions: Automatically find glass accurately
Scope of use
Building, central control doors and Windows, automobiles, home appliances, kitchenware, bathroom, solar energy, coating, mirror, handicrafts and other glass
Model | Equipment size(mm) | APEED | MAX CUTTING SIZE | THICKNESS | POWER | POWER SUPPLY |
| 3828 | 4080x3200x850 | 0-220m/min | 2660mm×3660mm | 3-19mm | 15kw | 380v/50HZ |
3826 | 4060x3200x850 | 0-220m/min | 2440mm×3660mm | 3-19mm | 13kw | 380v/50HZ |
2621 | 2860x2800x850 | 0-220m/min | 2500mm×2000mm | 3-19mm | 11kw | 380v/50HZ |
remark :Special sizes can be customized | ||||||
