Intelligent CNC Automatic Glass Cutter

Product performance

The plan attracts on the notion of German Industry 4.0, and realizes the computerized reducing process, data records and shrewd operation. The ordinary body of the tools adopts bridge metal technology, which is aged after welding, and the fuselage metal plate is milled out with a gantry mill, which has remarkable power and stability

Qualitative. Frame shape cloth is made of excessive manganese steel, excessive strength, no deformation, welding after growing old treatment, suitable bodily homes can be matched with bilateral grinding, four-edge grinding line production, glass does now not fall, enhance work efficiency.


Contact Now E-Mail Telephone WhatsApp
Product Details

The strategy leverages the concept of Germany's Industry 4.0, achieving automated cutting procedures, data logging, and intelligent operations. The standard structure of the equipment utilizes bridge welding technology, with post-weld aging for the body's metal sheets, which are then precision-milled using a gantry milling machine, ensuring exceptional power and stability.

The frame's fabric is crafted from high-manganese steel, offering exceptional strength and resistance to deformation. After undergoing aging treatment post-welding, it boasts suitable physical properties, enabling the use of double-side grinding and four-edge grinding line production. This design prevents glass from falling and enhances overall work efficiency.

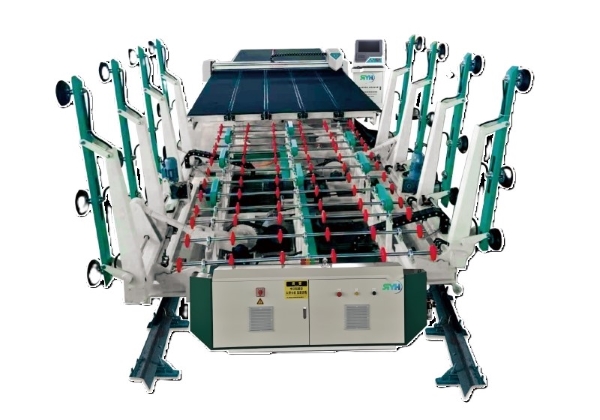

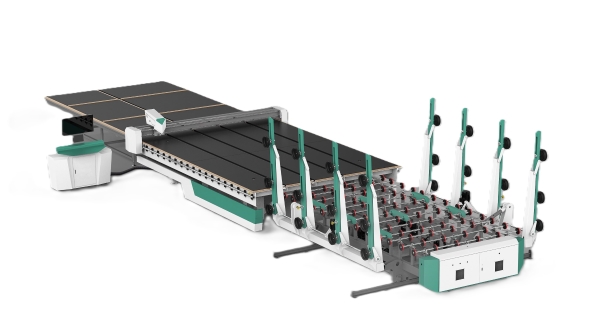

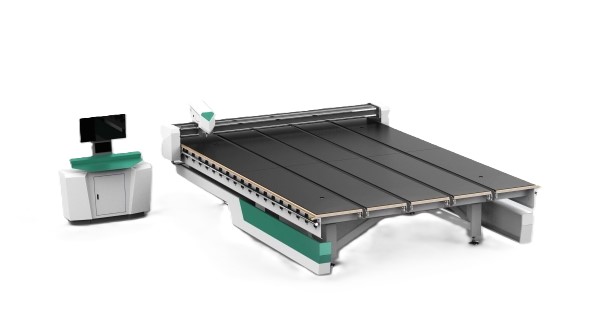

Intelligent CNC Automatic Glass Cutting LineIntelligent CNC Automatic Glass Cutting Line

Scope of use

Building, central control doors and Windows, automobiles, home appliances, kitchenware, bathroom, solar energy, coating, mirror, handicrafts and other glass



Model


ACCURACY


APEED


MAX CUTTING SIZE


THICKNESS


POWER


POWER SUPPLY

14033

≤±0.20mm/m

0-220m/min

14000mm×3300mm

3-19mm

70kw

380v/50HZ

6137

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

6133

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

5133

≤±0.20mm/m

0-220m/min

5100mm×3300mm

3-19mm

25kw

380v/50HZ

4228

≤±0.20mm/m

0-220m/min

4200mm×2800mm

3-19mm

18kw

380v/50HZ

2621

≤±0.20mm/m

0-220m/min

2600mm×2100mm

3-19mm

12kw

380v/50HZ

Remark :Special sizes can be customized
