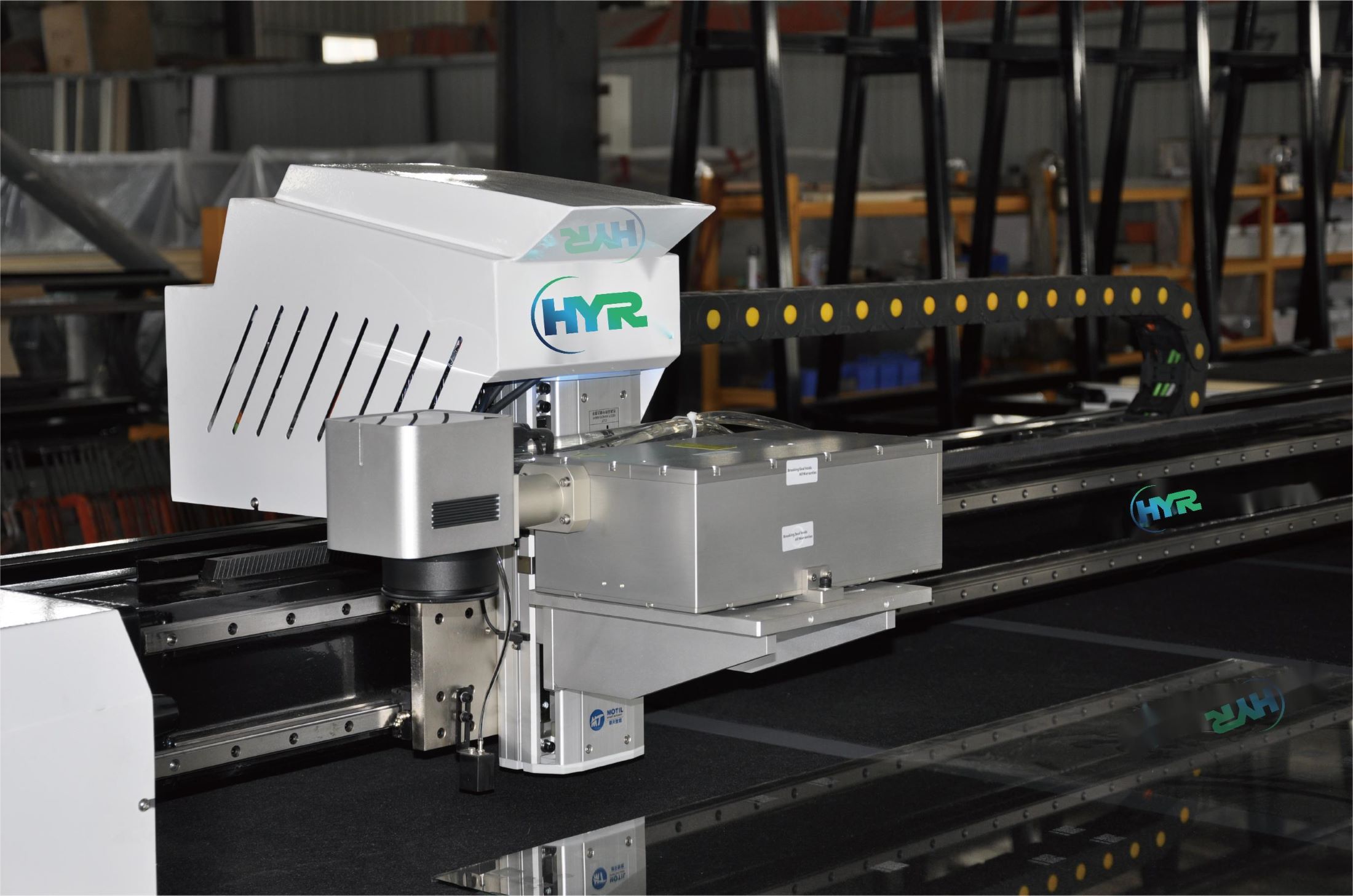

Energy-saving Glass Cutter

Product performance

The design draws on the concept of German Industry 4.0, and realizes the automatic cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stability qualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding after aging treatment, good physical properties can be matched with bilateral grinding, four-edge grinding line production, glass does not fall, improve work efficiency.


Contact Now E-Mail Telephone WhatsApp
Product Details

As a comprehensive technology enterprise integrating scientific research, production, sales and testing, Huayuexing has developed into a professional manufacturer of glass equipment in China, whose products cover the glass industry, rock plate industry processing equipment, doors and Windows industry, agricultural machinery and other deep processing equipment.

Energy-saving Glass CutterEnergy-saving Glass Cutter

At present, our products are exported to the United States, Kazakhstan, South Korea, Singapore, Thailand, Vietnam, Philippines, Australia, United Arab Emirates, South Africa, India and other countries and regions, enjoying a worldwide reputation.

Energy-saving Glass CutterEnergy-saving Glass Cutter

We have a wide range of glass cutting machines, there is always one that suits your needs.


Model


ACCURACY


APEED


MAX CUTTING SIZE


THICKNESS


POWER

POWER SUPPLY

14033

≤±0.20mm/m

0-220m/min

14000mm×3300mm

3-19mm

70kw

380v/50HZ

6137

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

6133

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

5133

≤±0.20mm/m

0-220m/min

5100mm×3300mm

3-19mm

25kw

380v/50HZ

4228

≤±0.20mm/m

0-220m/min

4200mm×2800mm

3-19mm

18kw

380v/50HZ

2621

≤±0.20mm/m

0-220m/min

2600mm×2100mm

3-19mm

12kw

380v/50HZ

Remark :Special sizes can be customized
