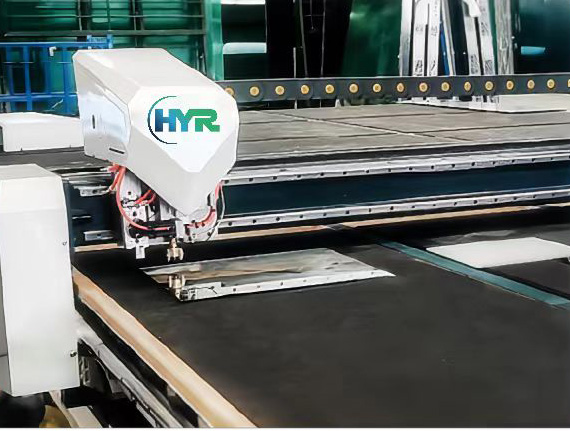

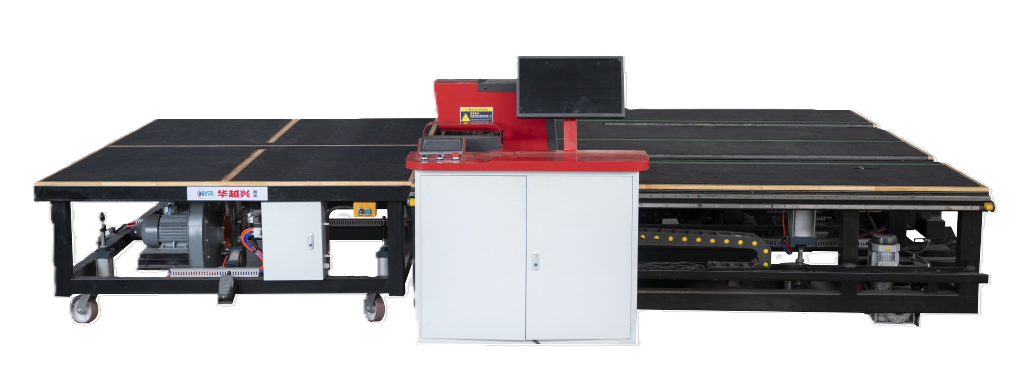

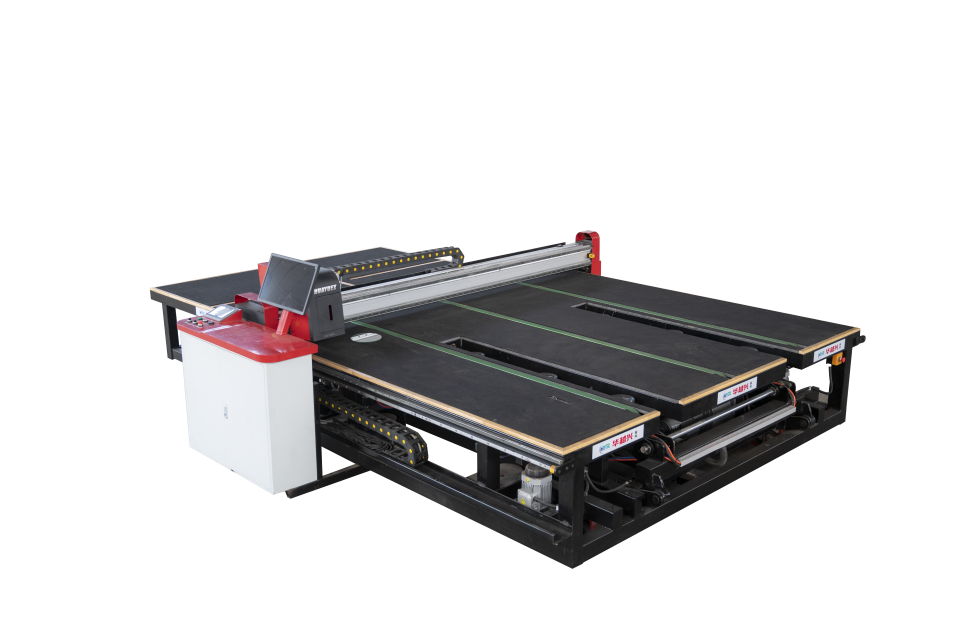

CNC Machine To Cut Glass
Product performance
The design draws on the concept of German Industry 4.0, and realizes the automatic cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stability qualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding after aging treatment, good physical properties can be matched with bilateral grinding, four-edge grinding line production, glass does not fall, improve work efficiency.
Drawing inspiration from the tenets of German Industry 4.0, the design integrates automated cutting, data information fusion, and intelligent control. The equipment’s structural frame leverages bridge steel technology, which is treated with an aging process post-welding. The machine’s body is meticulously milled from steel sheets using a gantry milling machine, endowing it with remarkable durability and stability.
The material used for the frame structure is high manganese steel, celebrated for its robustness and resistance to distortion. It is further enhanced with an aging treatment following welding, which guarantees superior physical attributes ideal for double-sided grinding and the production of glass edges without breakage. These characteristics not only amplify operational efficiency but also bolster the equipment’s overall resilience and dependability.
We have a variety of models of glass cutting machines, in order to solve different needs.
Model | ACCURACY | APEED | MAX CUTTING SIZE | THICKNESS | POWER | POWER SUPPLY |
14033 | ≤±0.20mm/m | 0-220m/min | 14000mm×3300mm | 3-19mm | 70kw | 380v/50HZ |
6137 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
6133 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
5133 | ≤±0.20mm/m | 0-220m/min | 5100mm×3300mm | 3-19mm | 25kw | 380v/50HZ |
4228 | ≤±0.20mm/m | 0-220m/min | 4200mm×2800mm | 3-19mm | 18kw | 380v/50HZ |
2621 | ≤±0.20mm/m | 0-220m/min | 2600mm×2100mm | 3-19mm | 12kw | 380v/50HZ |
Remark :Special sizes can be customized |
