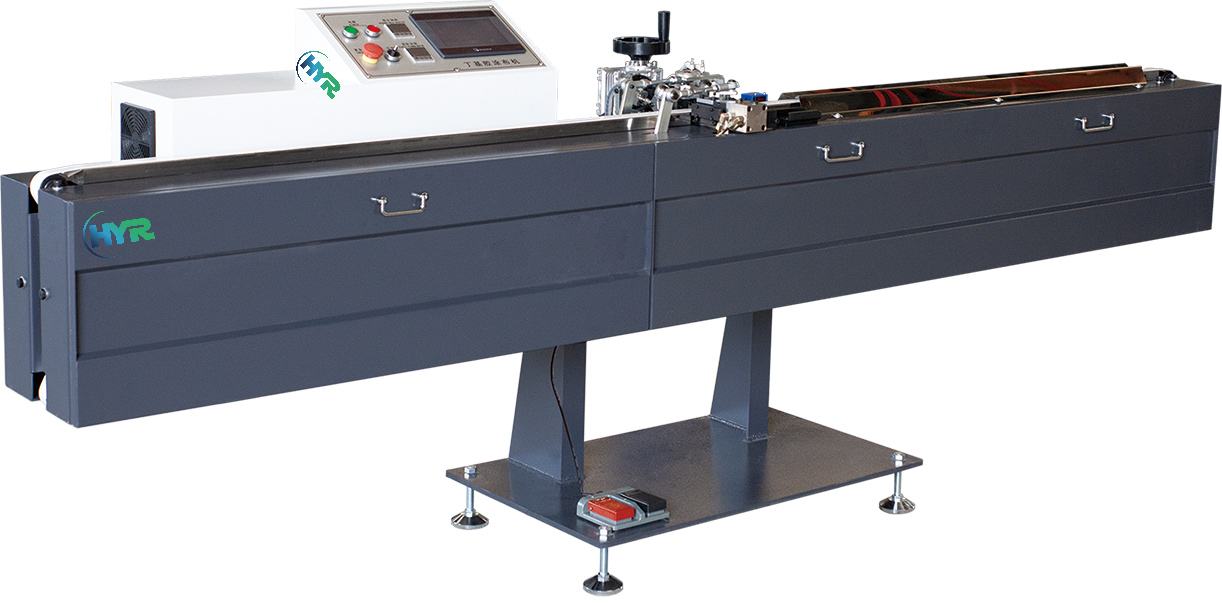

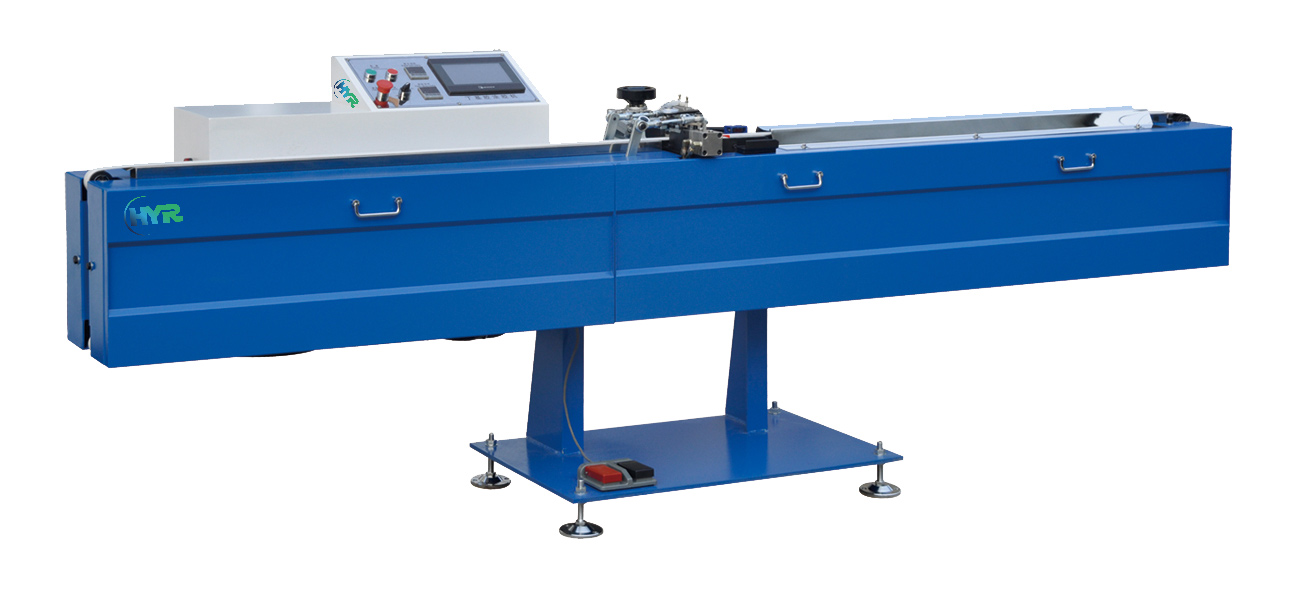

Automatic Butyl Coating Machine
MAIN FEATURES
1.the use of advanced gas-liquid pressurization system, so that the equipment pressure is more stable and energy saving;
2.the use of touch screen man-machine interface control system, the operation is more clear and simple;
3.the use of frequency conversion speed control conveying system, so that the speed of 1 to 5 speed from 15 to 35 meters/min optional;
4.take the lead in the use of advanced automatic glue system, can be adjusted within 6~18.5mm;
5.the rubber cylinder adopts rotary structure, 0~90 degrees of free rotation, release glue, maintenance is more convenient;
6.the use of pre-heating system, arbitrary set pre-heating time, improve efficiency;
7.glue automatic alarm system, accurately display the amount of glue used;
8.the use of large size glue cylinder, a glue amount of up to 14kg
MAIN FEATURES:
1.the use of advanced gas-liquid pressurization system, so that the equipment pressure is more stable and energy saving;
2.the use of touch screen man-machine interface control system, the operation is more clear and simple;
3.the use of frequency conversion speed control conveying system, so that the speed of 1 to 5 speed from 15 to 35 meters/min optional;
4.take the lead in the use of advanced automatic glue system, can be adjusted within 6~18.5mm;
5.the rubber cylinder adopts rotary structure, 0~90 degrees of free rotation, release glue, maintenance is more convenient;
6.the use of pre-heating system, arbitrary set pre-heating time, improve efficiency;
7.glue automatic alarm system, accurately display the amount of glue used;
8.the use of large size glue cylinder, a glue amount of up to 14kg
TECHNICAL PARAMETERS:
Voltage | 220v/50Hz | Air source | 0.6-0.8MPa |
Total power | 2.2KW | Nozzle Adjustable range | Auto 6-18.5mm; Manual operation 6-30mm |
Transfer speed | 15-50m/min | Cylinder diameter | φ200mm |
Extrusion pressure | 15-20MPa | Air consumption | 60L/Min |
Extrusion temperature | 110~140℃ | Overall dimension | 3000×620×1102mm |
