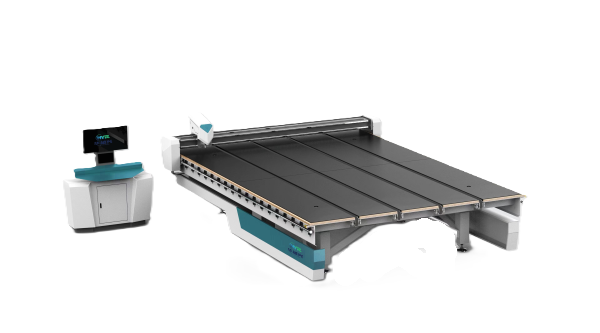

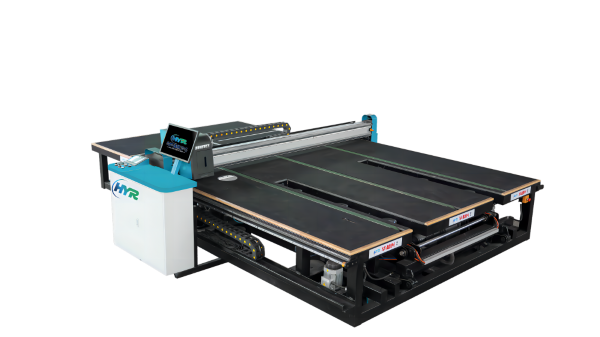

Best Seller Glass Mirror Cutting Table
Basic principle
The basic working principle is that the cut glass is transported to the work table by the conveyor belt, the position of the glass is automatically recorded through the photoelectric scanning system, and then the servo motor on the film removal device drives the gear to rotate to achieve 360° rotation of the grinding wheel, and the directly connected servo motor is connected through the grinding wheel
Drive the grinding wheel to rotate so as to achieve the effect of removing film, and move along the X direction and Y direction respectively to remove film through the cutting head of the diamond cutter wheel on the cutter box, and cut the substrate.
Basic principle
The basic working principle is that the cut glass is transported to the work table by the conveyor belt, the position of the glass is automatically recorded through the photoelectric scanning system, and then the servo motor on the film removal device drives the gear to rotate to achieve 360° rotation of the grinding wheel, and the directly connected servo motor is connected through the grinding wheel
Drive the grinding wheel to rotate so as to achieve the effect of removing film, and move along the X direction and Y direction respectively to remove film through the cutting head of the diamond cutter wheel on the cutter box, and cut the substrate.
Equipment composition mechanism

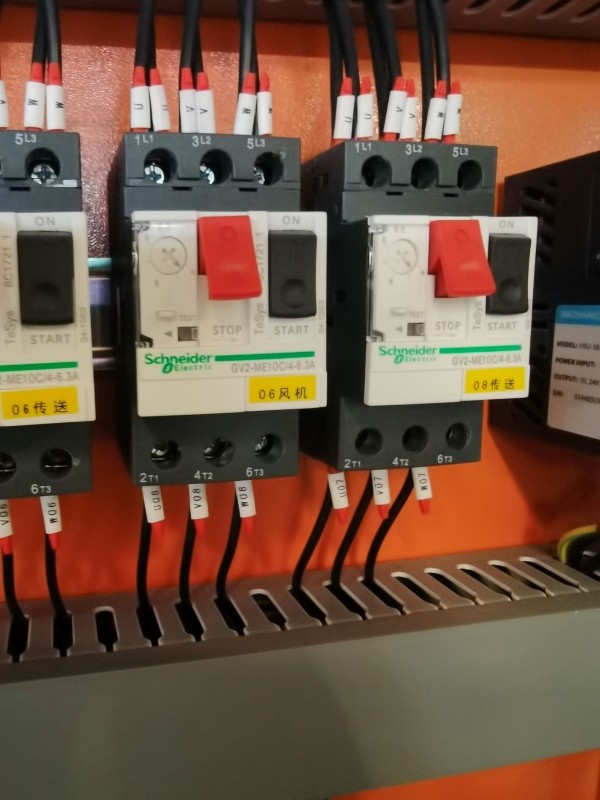

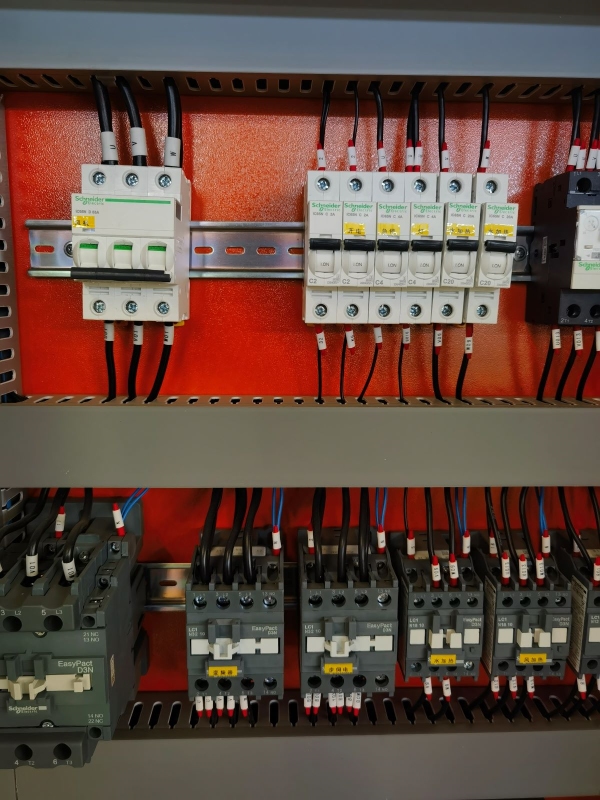

Automatic cutting machine: composed of frame mechanism, beam mechanism, table mechanism, tool head mechanism, removing film device, grinding wheel device, conveying mechanism, photoelectric scanning positioning mechanism, electrical control system
