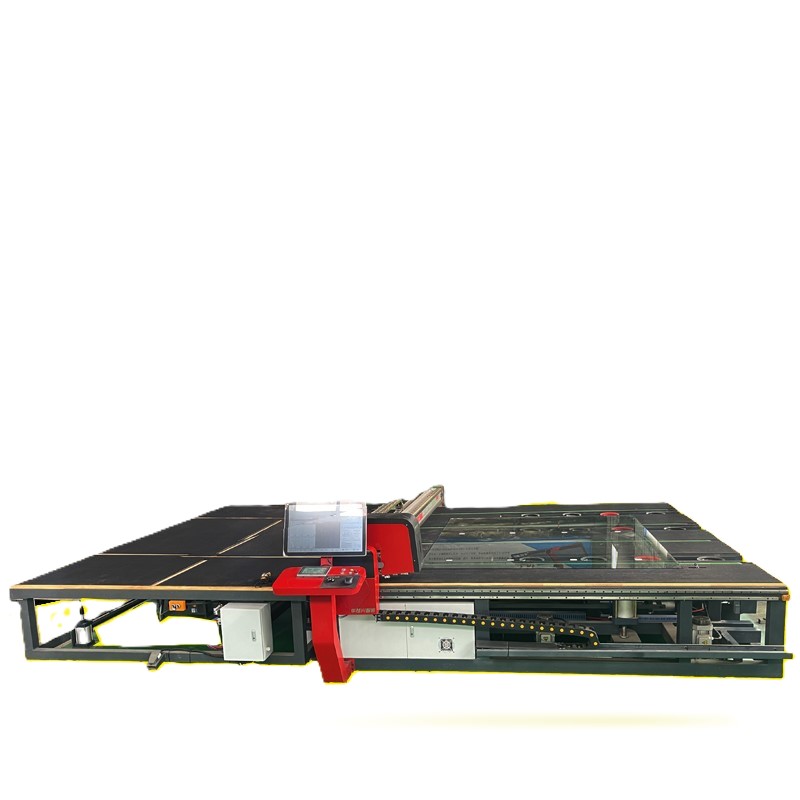

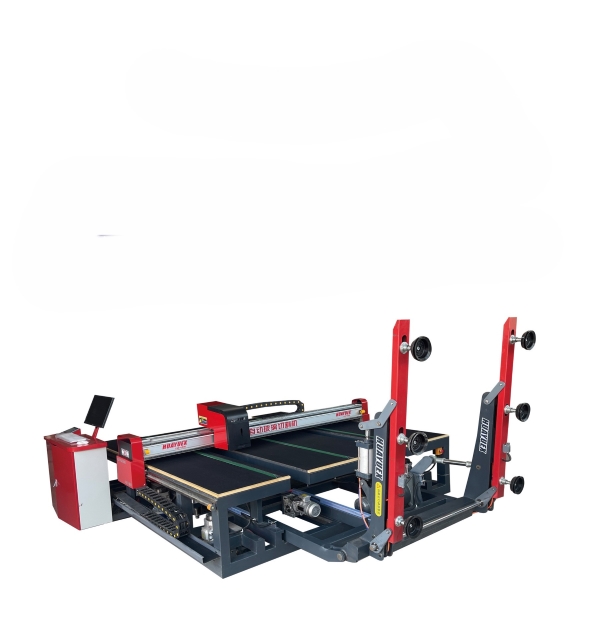

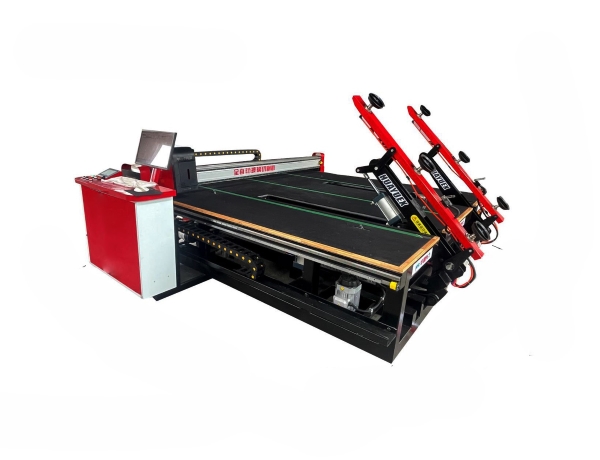

Automatic Dust Suction Low-E Gutter
Basic principle

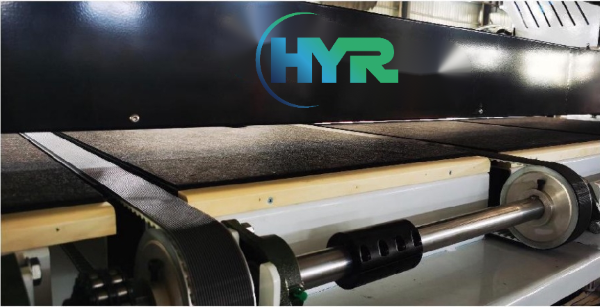

The basic working principle is that the cut glass is transported to the work table by the conveyor belt, the position of the glass is automatically recorded through the photoelectric scanning system, and then the servo motor on the film removal device drives the gear to rotate to achieve 360° rotation of the grinding wheel, and the directly connected servo motor is connected through the grinding wheel

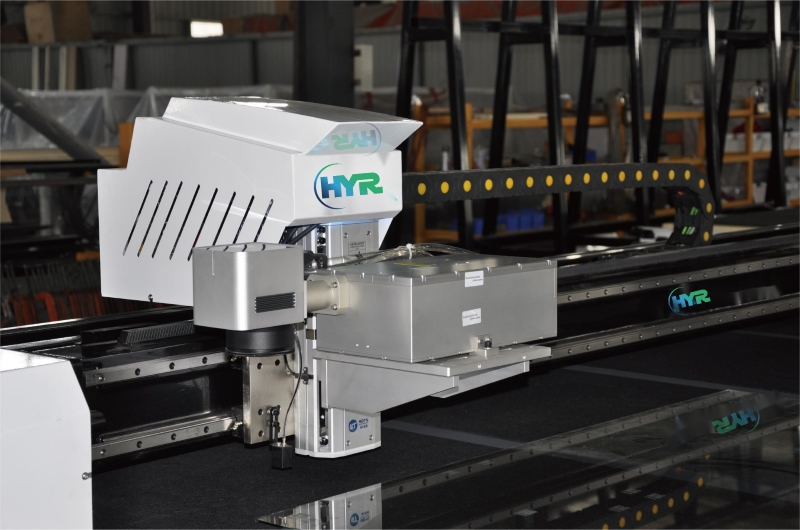

Drive the grinding wheel to rotate so as to achieve the effect of removing film, and move along the X direction and Y direction respectively to remove film through the cutting head of the diamond cutter wheel on the cutter box, and cut the substrate.
Basic principleThe basic working principle is that the cut glass is transported to the work table by the conveyor belt, the position of the glass is automatically recorded through the photoelectric scanning system, and then the servo motor on the film removal device drives the gear to rotate to achieve 360° rotation of the grinding wheel, and the directly connected servo motor is connected through the grinding wheel Drive the grinding wheel to rotate so as to achieve the effect of removing film, and move along the X direction and Y direction respectively to remove film through the cutting head of the diamond cutter wheel on the cutter box, and cut the substrate.
Operational Basics
The machine's fundamental operation involves transporting the glass to be cut via a conveyor belt to a worktable. An optical scanning system automatically records the glass's position. Subsequently, a servo motor in the film removal mechanism activates a gear, causing the grinding wheel to rotate at a full 360°. This action, in turn, is powered by a servo motor directly connected to the grinding wheel, ensuring the wheel's rotation for film removal. The cutting head, equipped with a diamond cutter wheel, moves along the X and Y axes to remove the film and cut the glass substrate.
At present, our products are exported to the United States, Kazakhstan, South Korea, Singapore, Thailand, Vietnam, Philippines, Australia, United Arab Emirates, South Africa, India and other countries and regions, enjoying a worldwide reputation.
