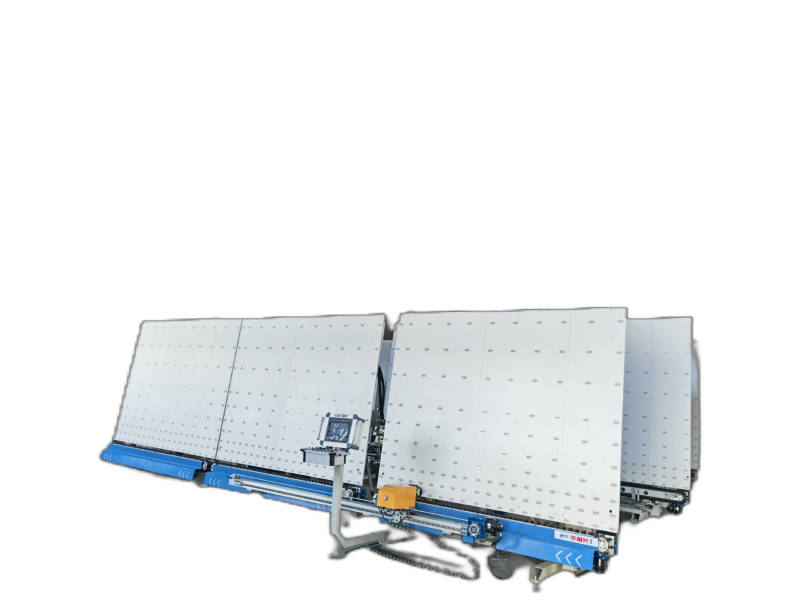

Vertical Automatic Glass Sealing Machine

MAIN FEATURES

1.can achieve a variety of sizes of rectangular insulating glass glue continuity, glue efficiency is high, stable quality;

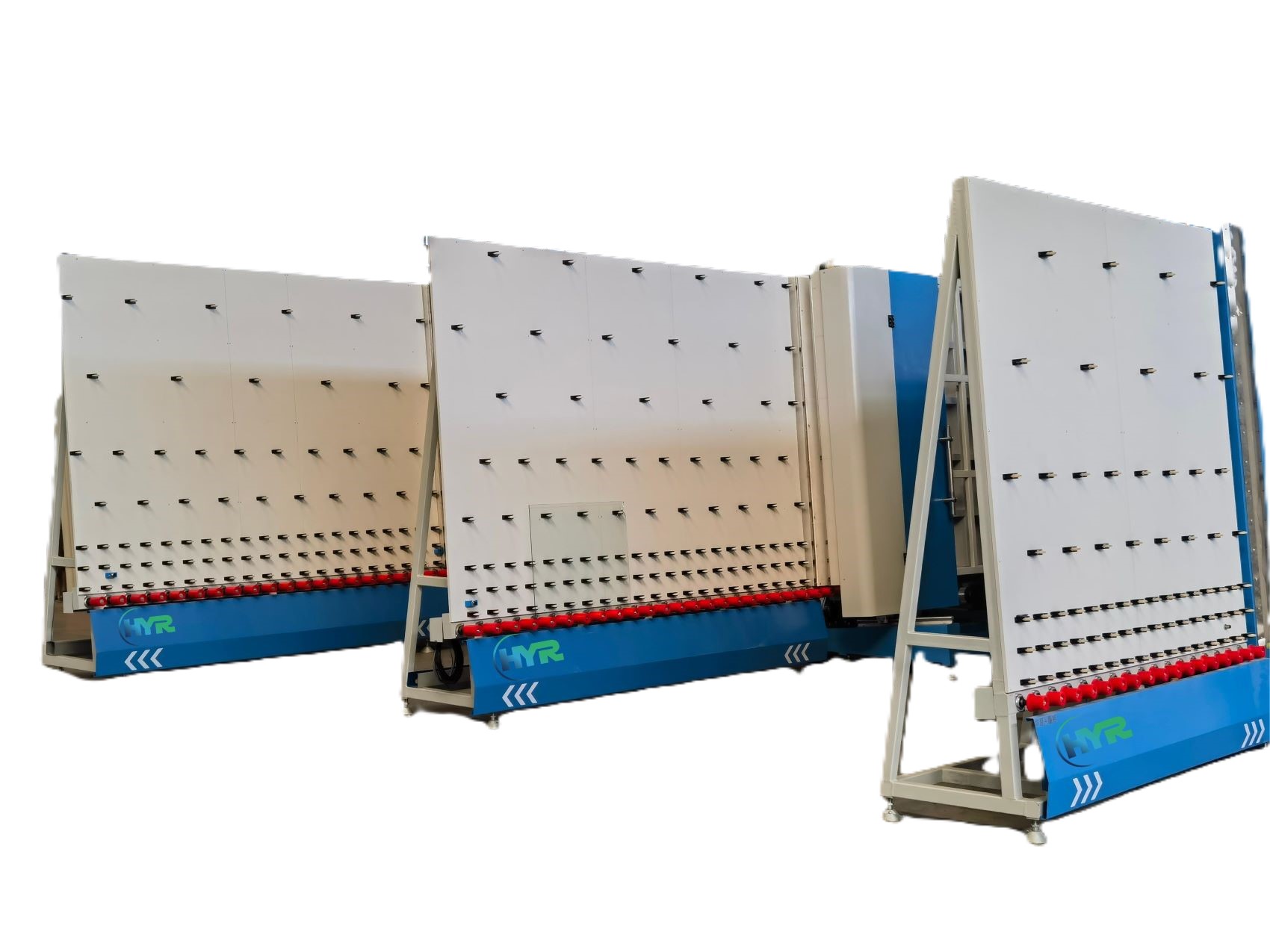

The machine is composed of 4 sections, the first section can pre-store a piece of glass, the fourth section can wait for the film, the efficiency is 20% higher than other manufacturers;

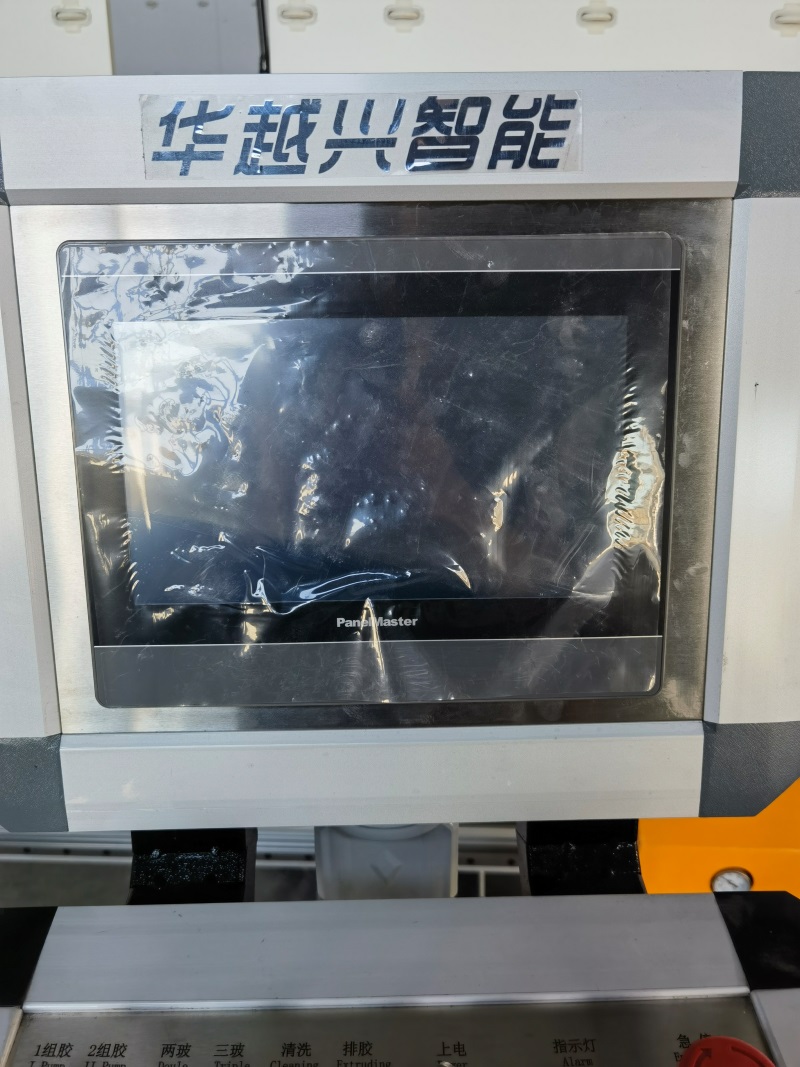

2. the common function is the button switch design, the operation is simpler, convenient to train employees, the detailed parameters can be operated by the touch film screen;

3. the side of the glue filled no bubbles, full corner, no manual trimming;

4. the world famous brand servo control system, stable performance;

5. accurate synchronous belt transmission system to ensure the smooth running of glass without adhesive;

6. unique glue amount automatic alarm device and automatic glue discharge function.

7. can be customized according to customer requirements, reverse and various sizes of equipment.

8. The inlet and outlet are made of all-aluminum structure, waterproof, more durable


Contact Now E-Mail Telephone WhatsApp
Product Details

Key Characteristics of the Insulating Glass Gluing Equipment:

1.Size Versatility and Efficiency: The equipment is designed to handle a wide range of rectangular insulating glass sizes, ensuring continuous glue application with high efficiency and consistent quality. The system is divided into four sections, where the first section allows for the pre-storage of a glass pane, and the fourth section is equipped for film application, enhancing overall efficiency by 20% compared to competitors.


2. Simplified Operation: The machine features a straightforward button switch design for common functions, making it easy to use and simplifying employee training. Additionally, the touch film screen interface allows for the adjustment of detailed parameters with ease.


3. Bubble-Free Application: The gluing process on the sides ensures a bubble-free fill, with complete coverage at the corners, thus eliminating the need for manual trimming.


4. Robust Control System: The machine is equipped with a servo control system from a world-renowned brand, guaranteeing stable and dependable performance.


5. Precise Belt Drive: An exact synchronous belt transmission system is employed to ensure the glass moves smoothly without any adhesive interference.


6. Intelligent Glue Management: The equipment includes a unique automatic alarm system for monitoring glue levels and an automatic glue discharge feature for streamlined operation.


7. Customization Flexibility: The machine can be customized to fit customer specifications, including the option for reverse operation and a variety of equipment sizes.


8. Durable and Waterproof Construction: The inlet and outlet sections are built with an all-aluminum structure, providing enhanced durability and waterproofing, ensuring a longer service life.

Vertical Automatic Glass Sealing MachineVertical Automatic Glass Sealing Machine


TECHNICAL   PARAMETERS

Voltage

3P/380V/50Hz

Insulating glass thickness

12-60mm

Total power

14KW

Coating depth

3-15mm

Transfer speed

0-50m/min

Aluminum frame width

6-27mm

Min.glass. size

300×180mm

Coating rate

5-40m/min



Max.Glsss. Size

4000×2500mm

Hydraulic pressure

<100kg/cm²

Overall dimension

11250×2500×3350mm

Air source

0.6-0.8MPa
