Top Rated Hollow Glass Vacuum Sealer
Primary Features:
1. Versatile Insulating Glass Gluing: Capable of gluing a variety of sizes of rectangular insulating glass, ensuring high glue efficiency and stable quality. The third section is designed to pre-store glass, strengthening the continuity of equipment operation and enhancing production efficiency.
2. User-Friendly Operation: Features a button switch design for common functions, simplifying operation and making it easier to train employees. Detailed parameters can be adjusted via a touch film screen. The machine ensures bubble-free glue application along the edges and full coverage at the corners, eliminating the need for manual trimming.

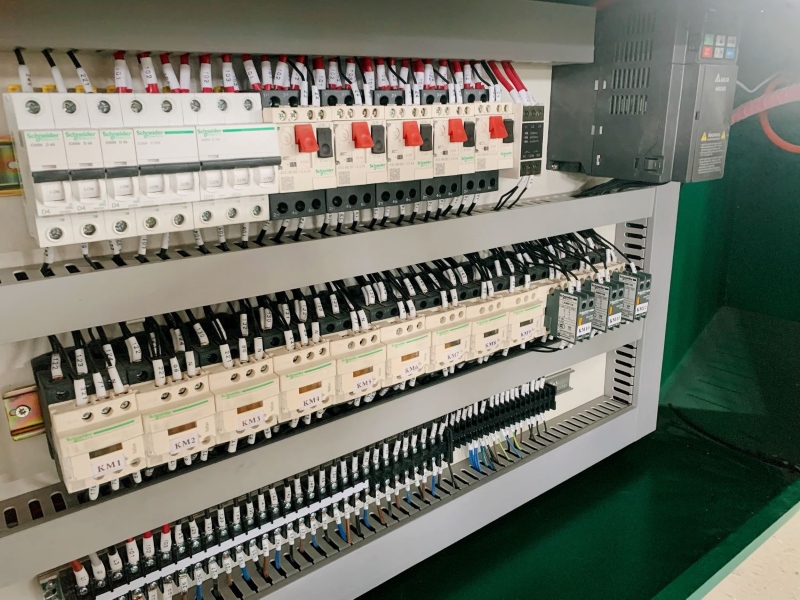

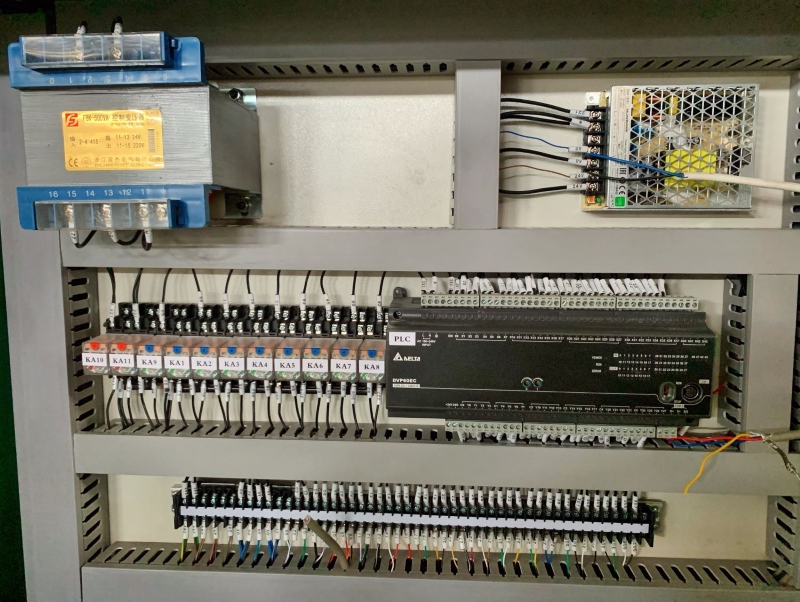

3. Reliable Control System: Equipped with a world-renowned brand servo control system, ensuring stable performance.
4. Precise Glass Handling: Incorporates an accurate synchronous belt transmission system to ensure the smooth running of glass without adhesive.
5. Advanced Glue Management: Features a unique glue amount automatic alarm device and an automatic glue discharge function.
Key Features of the Insulating Glass Gluing Machine:
1. Adaptable Gluing for Various Sizes: The machine is designed to efficiently glue insulating glass of various rectangular sizes, ensuring high glue application efficiency and consistent quality. It includes a pre-storage section in the third module to enhance the continuity of equipment operation and boost production efficiency.

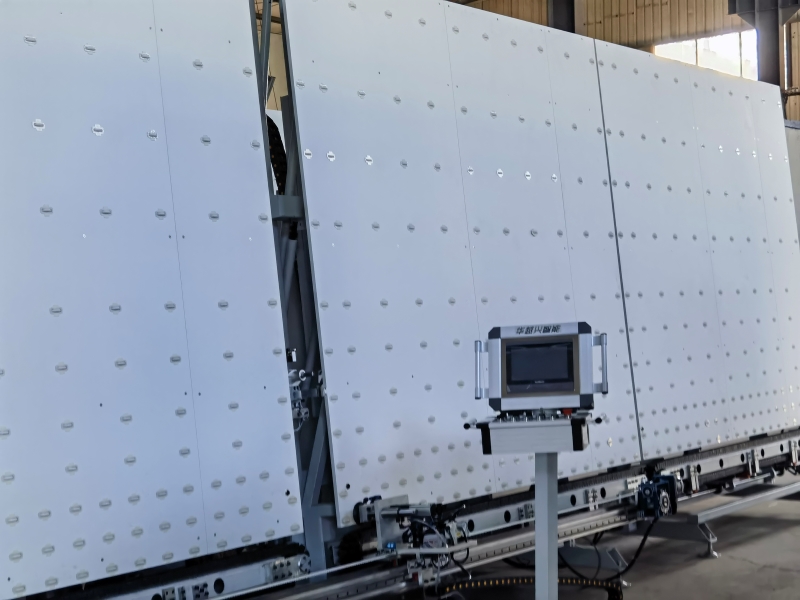

2. Intuitive Operation: The machine features a user-friendly button switch design for common functions, simplifying operation and making it easier to train employees. Detailed parameters can be adjusted through a touch screen interface. The machine ensures bubble-free glue application along the edges and full coverage at the corners, eliminating the need for manual trimming.
3. Reliable Control System: Equipped with a servo control system from a world-renowned brand, ensuring stable performance and reliability.
4. Seamless Glass Handling: Incorporates an accurate synchronous belt transmission system to ensure the smooth running of glass without adhesive, maintaining the integrity of the glass.
5. Advanced Glue Management: Features a unique automatic alarm device for monitoring glue levels and an automatic glue discharge function, optimizing the gluing process and reducing downtime.
Technical Specifications
Voltage | 3P/380V/50Hz | Insulating glass thickness | 12-60mm |
Total power | 13KW | Coating depth | 3-15mm |
Transfer speed | 0-50m/min | Aluminum frame width | 6-27mm |
Min.glass. size | 300×180mm | Coating rate | 5-40m/min
|
Max.Glass. Size | 2000×2500mm | Hydraulic pressure | <100kg/cm² |
Overall dimension | 8340×2500×2850mm | Air source | 0.6-0.8MPa |
