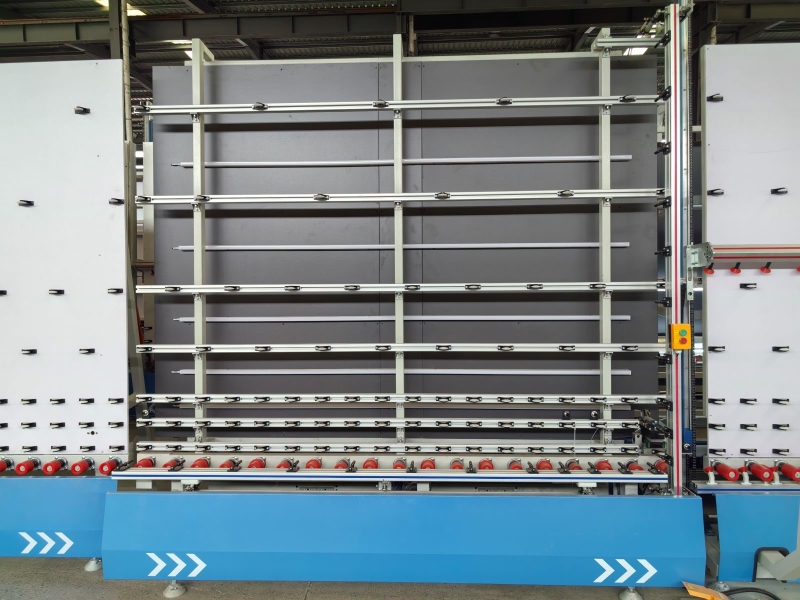

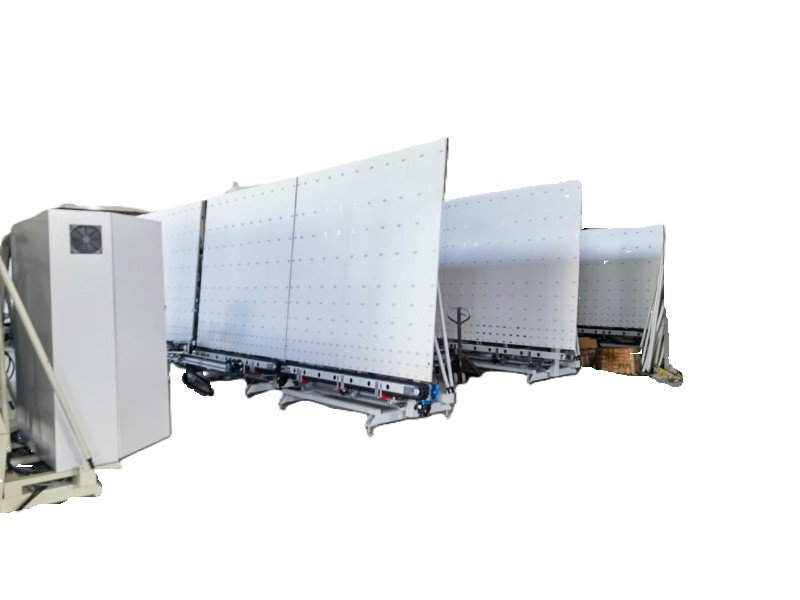

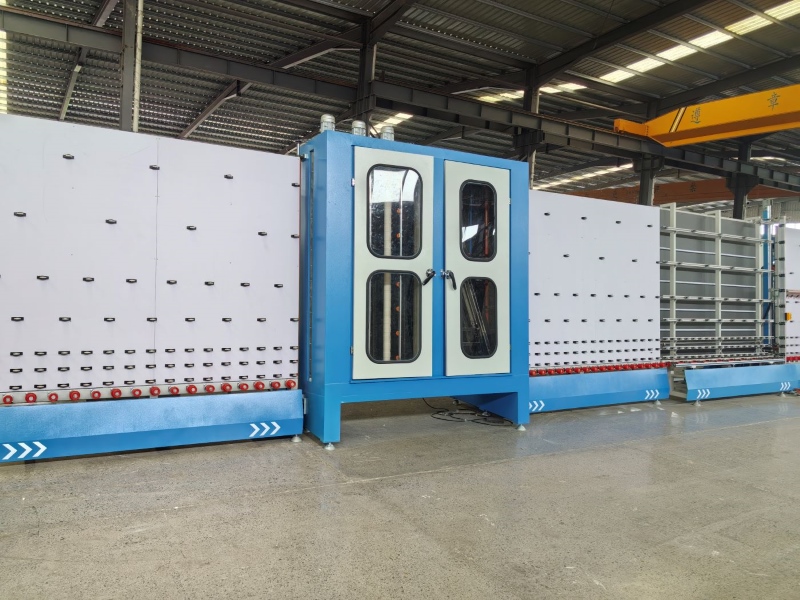

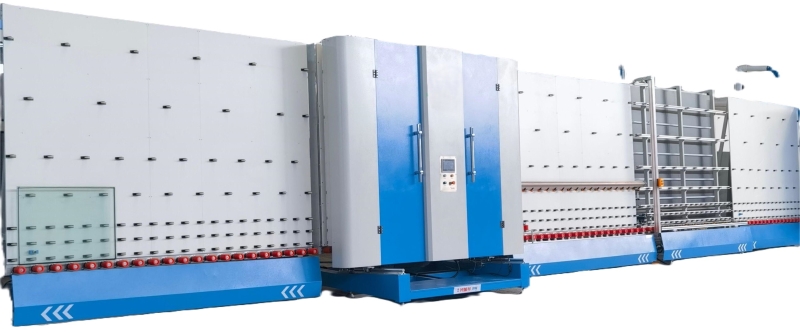

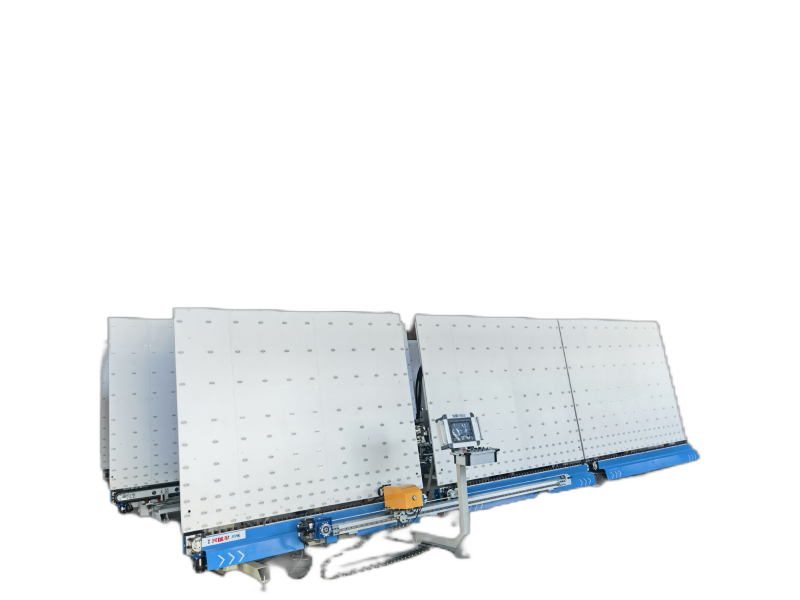

High Efficiency Insulating Glass Automatic Sealing Machine

Key Features:

1. Handles various rectangular insulating glass sizes with continuous glue application, high efficiency, and quality. Section three pre-stores glass for uninterrupted operation and productivity.

2. User-friendly with button switches and a touch screen for parameter control. Glue application is bubble-free at edges and corners, no manual trimming needed.

3. Equipped with a top-brand servo control system for consistent performance.

4. Synchronous belt transmission system ensures smooth, adhesive-free glass movement.

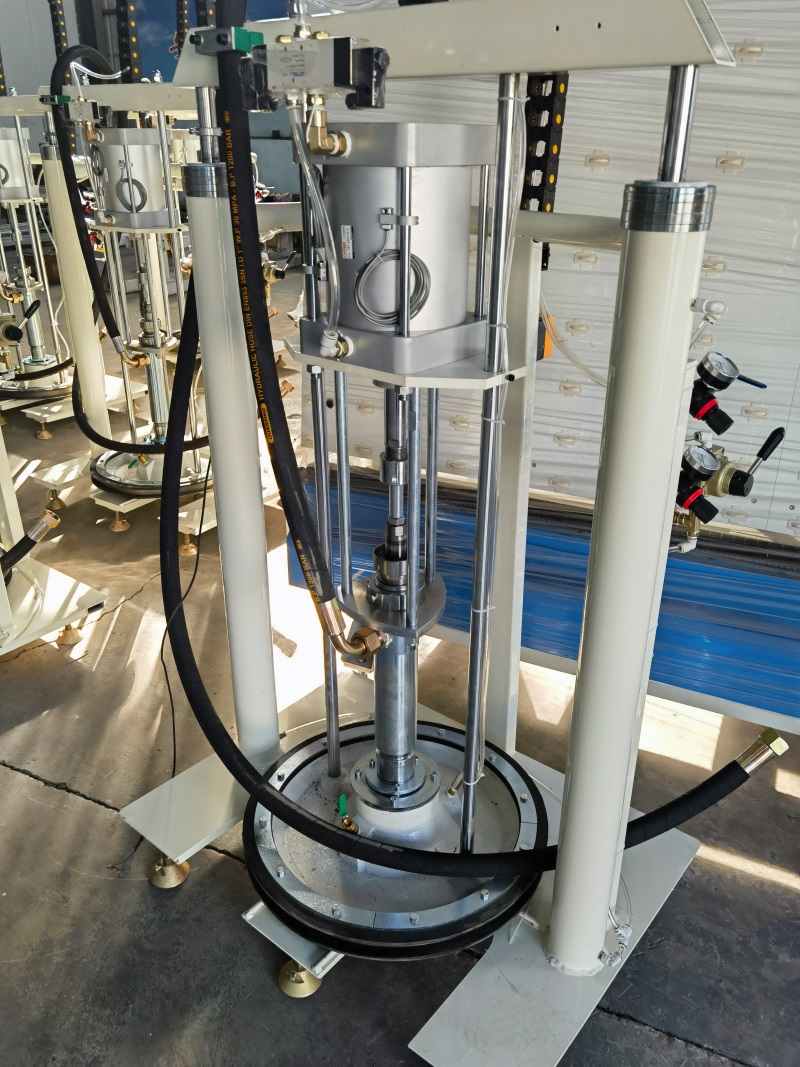

5. Features an automatic glue level alarm and discharge function for streamlined operation.


Contact Now E-Mail Telephone WhatsApp
Product Details

Core Characteristics:

1. Accommodates diverse sizes of rectangular insulating glass with seamless glue application, ensuring high efficiency and quality. The third module pre-stores glass to enhance operational flow and boost efficiency.

High Efficiency Insulating Glass Automatic Sealing MachineHigh Efficiency Insulating Glass Automatic Sealing Machine

2. Simplified operation thanks to button switches and a touch screen interface for parameter adjustment. The machine applies glue without bubbles at the edges and corners, eliminating the need for manual trimming.


3. Outfitted with a premium servo control system from a renowned brand for steady and reliable performance.

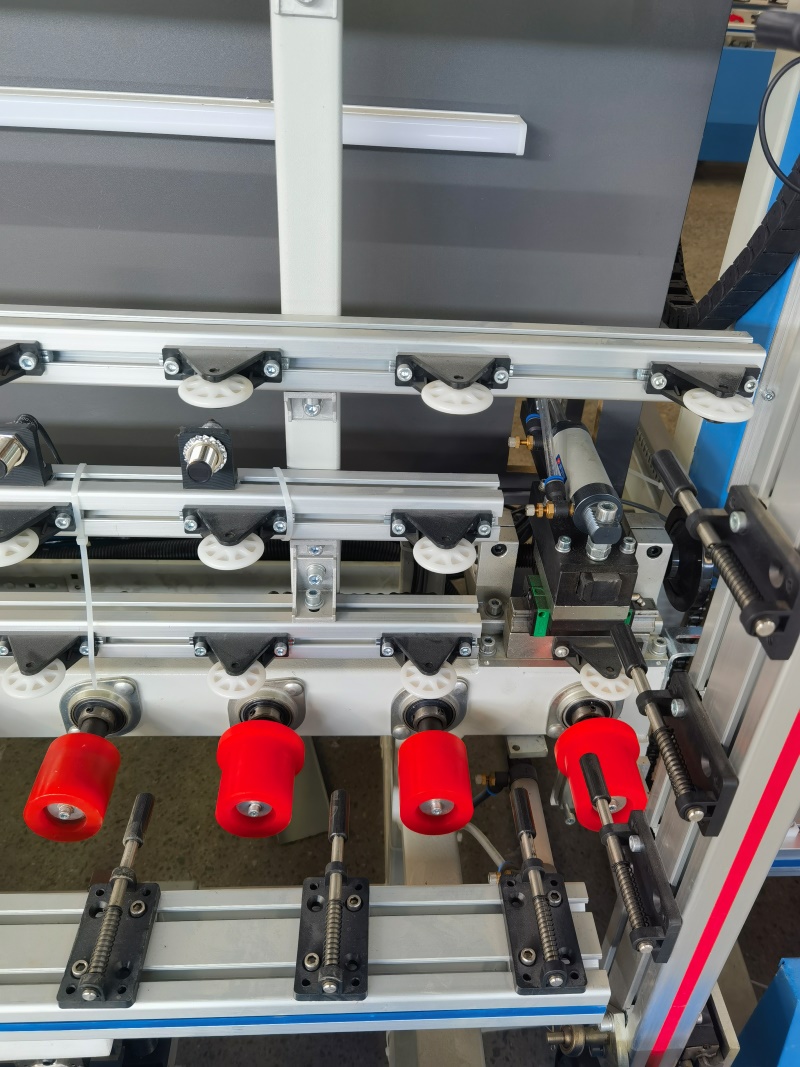

4. A precise synchronous belt transmission system guarantees the glass moves smoothly without any adhesive interference.

High Efficiency Insulating Glass Automatic Sealing MachineHigh Efficiency Insulating Glass Automatic Sealing Machine

5. Includes an innovative automatic glue level alarm and a discharge function to facilitate a smooth and efficient workflow.



 TECHNICAL   PARAMETERS

Voltage

3P/380V/50Hz

Insulating glass thickness

12-60mm

Total power

13KW

Coating depth

3-15mm

Transfer speed

0-50m/min

Aluminum frame width

6-27mm

Min.glass. size

300×180mm

Coating rate

5-40m/min



Max.Glsss. Size

2000×2500mm

Hydraulic pressure

<100kg/cm²

Overall dimension

8340×2500×2850mm

Air source

0.6-0.8MPa


At present, our products are exported to the United States, Kazakhstan, South Korea, Singapore, Thailand, Vietnam, Philippines, Australia, United Arab Emirates, South Africa, India and other countries and regions, enjoying a worldwide reputation. We look forward to cooperating with you!
