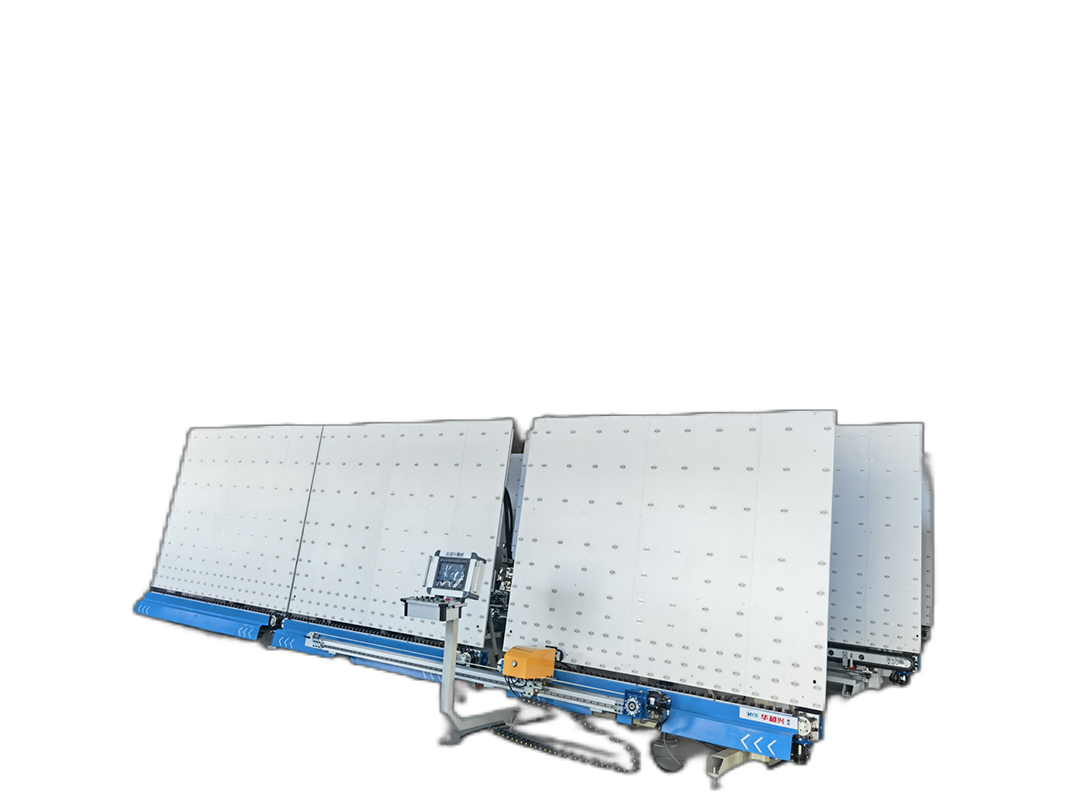

Good Quality Vertical Automatic Insulating Glass Production Line
The washing area and rinsing area are all made of stainless steel and corrosion-resistant materials, with three pairs of brushes running independently and adjustable spacing of brushes, and the whole process is operated by digital control automation program;
It can produce double-glazed and triple-glazed insulating glass and super-long glass, and the super-long glass can be pressed twice;
The whole machine has two operation modes: automatic and manual, which is more convenient and quicker to operate;
The plate pressure adopts exclusive point adjustment technology, and is equipped with automatic plate pressure maintenance function; The drying section circulates hot air to increase the speed of glass cleaning, ensure drying effect and reduce noise;
All adopt high-density soft brushes, which can clean all kinds of LOW-E glass and coated glass;
This machine is equipped with advanced intelligent cleaning system;
The machine is equipped with advanced intelligent cleaning system; ◎ It can be customized with forward and reverse direction equipment according to the direction of glass traveling.
Can be customized with in-board inflatable function equipment, PW-C (external combination + inflatable), PW (external combination).
The washing area and rinsing area are all made of stainless steel and corrosion-resistant materials, with three pairs of brushes running independently and adjustable spacing of brushes, and the whole process is operated by digital control automation program;
It can produce double-glazed and triple-glazed insulating glass and super-long glass, and the super-long glass can be pressed twice;
The whole machine has two operation modes: automatic and manual, which is more convenient and quicker to operate;
The plate pressure adopts exclusive point adjustment technology, and is equipped with automatic plate pressure maintenance function;The drying section circulates hot air to increase the speed of glass cleaning, ensure drying effect and reduce noise;
All adopt high-density soft brushes, which can clean all kinds of LOW-E glass and coated glass;
This machine is equipped with advanced intelligent cleaning system;
The machine is equipped with advanced intelligent cleaning system; ◎ It can be customized with forward and reverse direction equipment according to the direction of glass traveling.
Can be customized with in-board inflatable function equipment, PW-C (external combination + inflatable), PW (external combination).
Voltage | 3P/380V/50Hz | Maximum glass size | 2500×2500mm |
Total power | 32KW | Maximum thickness of insulating glass | 60mm |
Washing speed | 0-13m/min | Air consumption | 1.5m³/min |
Maximum working speed | 50m/min | Dimension | 22400×2800×3480mm |
Minimum glass size | 300×450mm |
