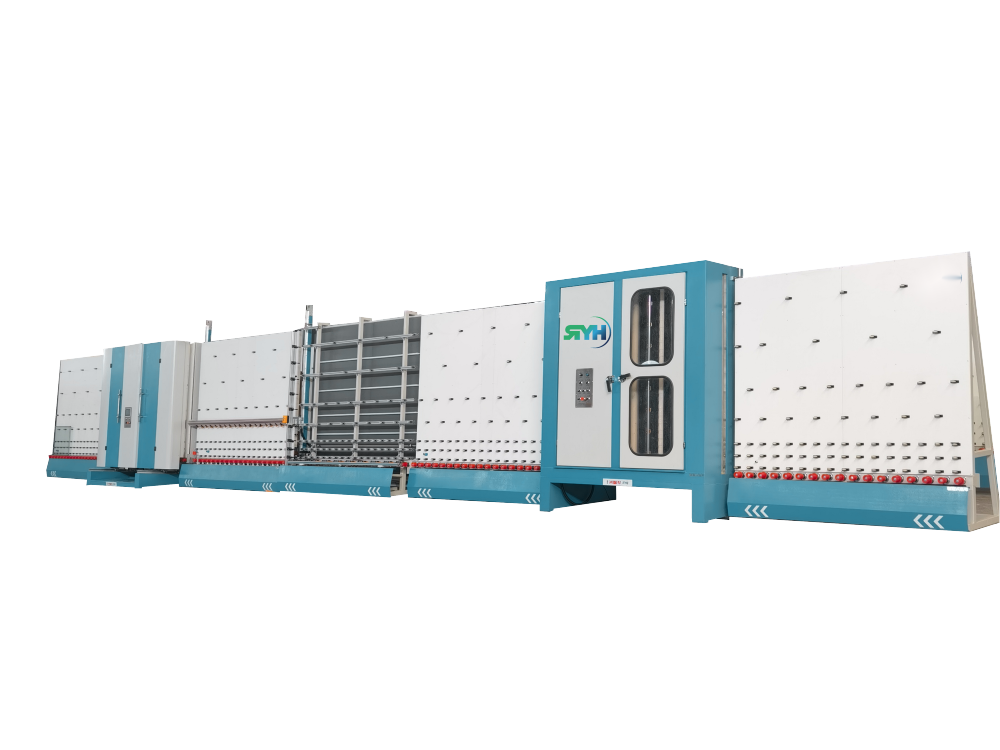

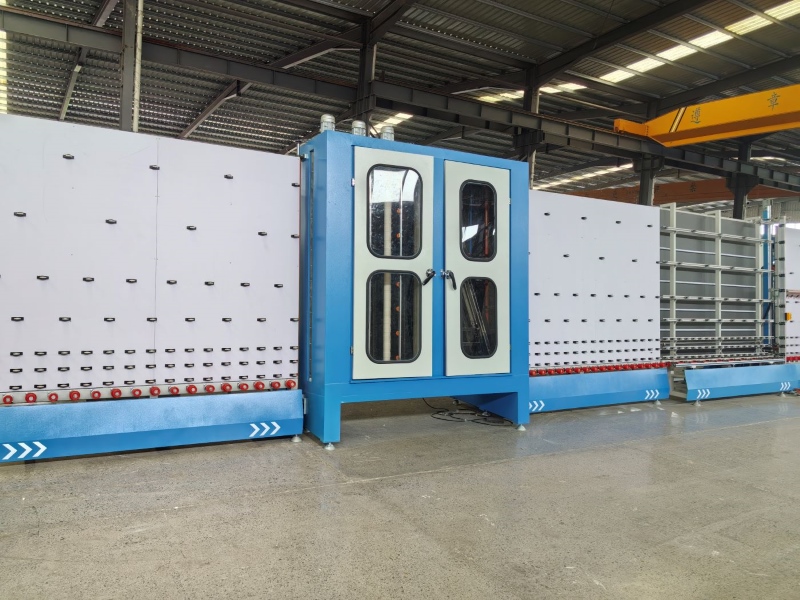

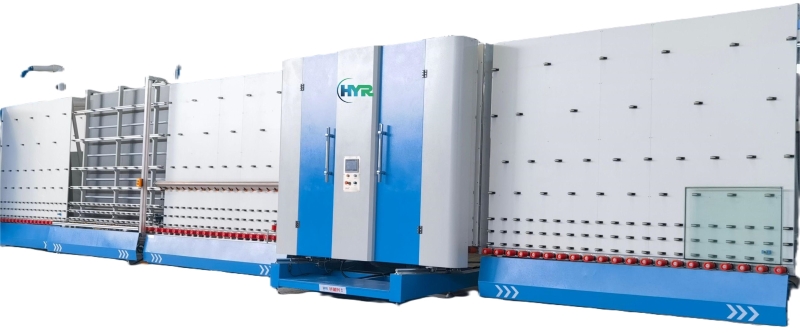

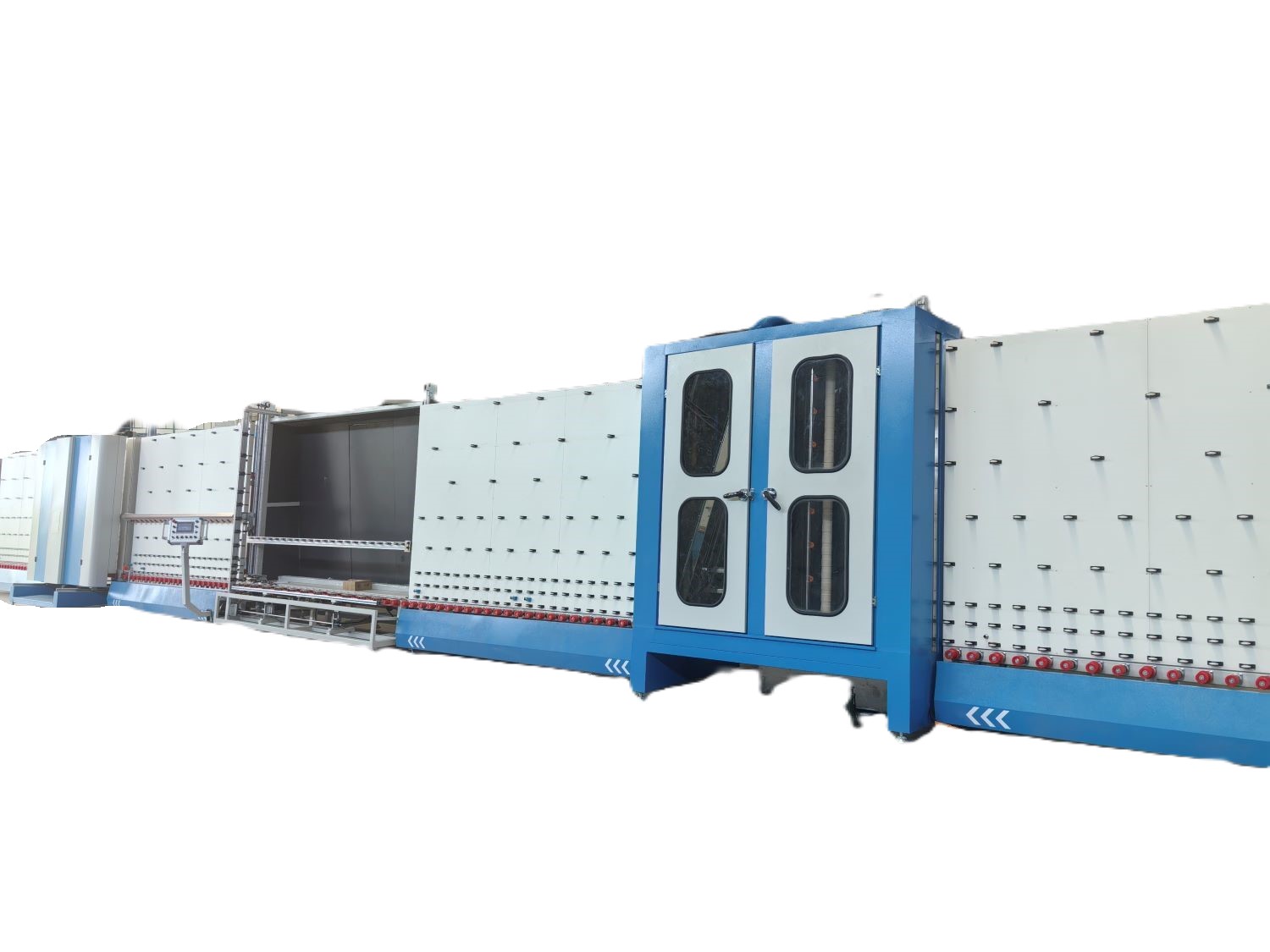

Custom Double Pane Glass Manufacturing

MAIN FEATURES

Wash area and wash areas using stainless steel and corrosion-resistant materials, three pairs of independent operation brush, brush spacing is adjustable, using CNC automation program runs;

1.Can produce double glass and three glass hallow glass, long glass, long glass can be secondary plate pressure; Automatic or manual operation, easy to operate;

2.Plate pressure with exclusive point adjustment technology, and with automatic plate presure maintenance function;

3.Circulating hot air drying section, improve the cleaning speed, making it dry reduce noise; All use high-density soft brush, can clean all kind of LOW-E glasses, coated glasses;

4.The machine is equipped with an advanced intelligent cleaning system;

5.Customizable forward and reverse direction of the device according to the direction of travel of the glass.

Customizable in board inflation function equipment, PW-C(external closure inflation), PW(external closure).


Contact Now E-Mail Telephone WhatsApp
Product Details

Core Advantages:

1. Total Automation

- Seamless automation from start to finish, cutting labor expenses and accelerating output efficiency.

- Smart control interface for exact operations with reduced manual involvement.

2. Precision Engineering

- Employs precision linear guides and ball screws for deterministic and stable motion.

- Cutting-edge sealing and spacer placement technology for flawless alignment and uniformity.

3. Flexible and Adaptable

- Capable of fabricating diverse insulating glass dimensions and forms to cater to diverse market requirements.

- Configurable modular architecture for straightforward personalization and expandability to suit your manufacturing requirements.

4. Eco-Friendly Efficiency

- Engineered to lower energy usage without compromising on high-volume production.

- Environmentally conscious design that advances a more sustainable production approach.

5. Robust Quality Control

- In-built quality management systems guarantee that every insulating glass panel adheres to stringent quality criteria.

- Automated scrutiny procedures identify flaws in the product prior to final packaging.

Custom Double Pane Glass ManufacturingCustom Double Pane Glass Manufacturing


Technical Parameters

Voltage

3P/380V/50Hz

Maximum glass size

2000×2500mm

Total power

28KW

Maximum thickness of insulating glass

60mm

Washing speed

0-13m/min

Air consumption

1m³/min

Maximum working speed

50m/min

Dimension

18200×2800×2920mm

Minimum glass size

300×450mm




Transform your insulating glass production with our Fully Automatic Insulating Glass Production Line. Designed to deliver a competitive edge in the market, this system is the epitome of efficiency, reliability, and innovation. Don't miss out on the opportunity to lead the industry in quality and productivity. Contact us today for a personalized consultation and to bring your production capabilities to new heights.
