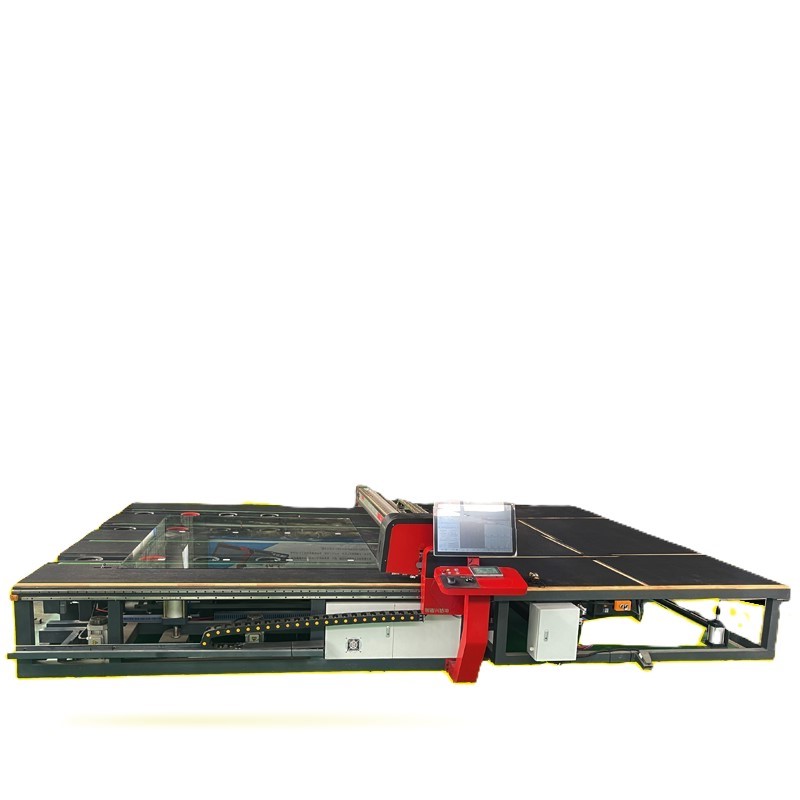

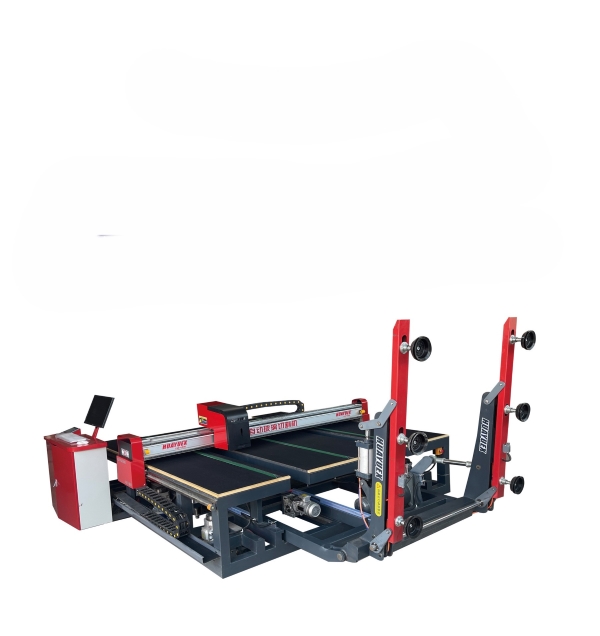

Mobile Tempered Glass Cutter

Product performance

The design draws on the concept of German Industry 4.0, and realizes the automatic cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stability qualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding after aging treatment, good physical properties can be matched with bilateral grinding, four-edge grinding line production, glass does not fall, improve work efficiency.


Contact Now E-Mail Telephone WhatsApp
Product Details

Performance Features of the Product:

Inspired by the German Industry 4.0 paradigm, the product achieves an automated cutting procedure, data integration, and intelligent operations. The equipment's structural frame is crafted using bridge steel technology, treated with an aging process following welding, and the body is precision-milled from steel plate using a gantry mill for superior strength and stability. The frame is constructed from high manganese steel, renowned for its high strength and non-deformable qualities, and is further enhanced by an aging treatment post-welding to ensure optimal physical properties. This design is compatible with bilateral and four-edge grinding line production, preventing glass from slipping and significantly boosting work efficiency.

Global Supply Chain Mobile Tempered Glass CutterGlobal Supply Chain Mobile Tempered Glass Cutter

Applications:

The equipment is versatile and applicable across various sectors, including construction, for central control doors and windows, automotive, home appliances, kitchenware, bathroom fixtures, solar energy, coated glass, mirrors, handicrafts, and other glass-related industries.

Global Supply Chain Mobile Tempered Glass CutterGlobal Supply Chain Mobile Tempered Glass Cutter


We provide different models of glass cutting machines, please tell me your needs, I'll recommend you!


Model


ACCURACY


APEED


MAX CUTTING SIZE


THICKNESS


POWER


POWER SUPPLY

14033

≤±0.20mm/m

0-220m/min

14000mm×3300mm

3-19mm

70kw

380v/50HZ

6137

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

6133

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

5133

≤±0.20mm/m

0-220m/min

5100mm×3300mm

3-19mm

25kw

380v/50HZ

4228

≤±0.20mm/m

0-220m/min

4200mm×2800mm

3-19mm

18kw

380v/50HZ

2621

≤±0.20mm/m

0-220m/min

2600mm×2100mm

3-19mm

12kw

380v/50HZ

Remark :Special sizes can be customized
