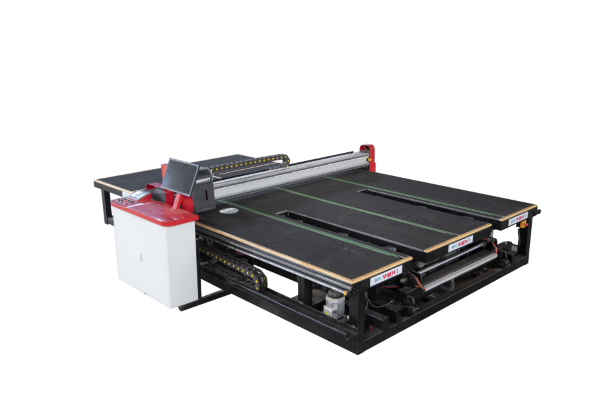

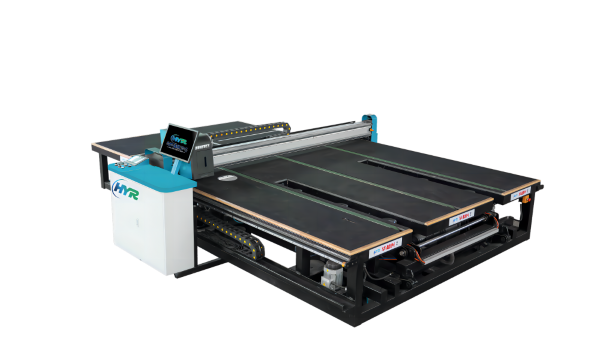

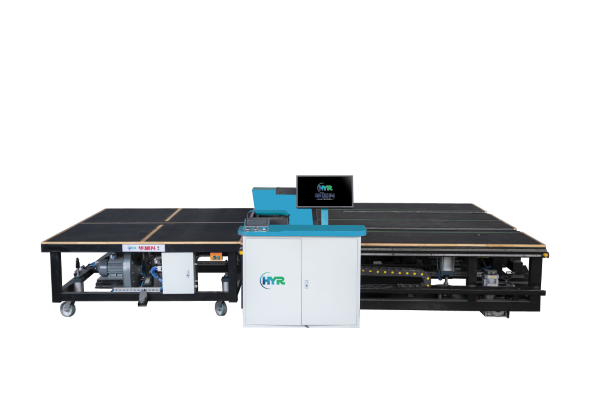

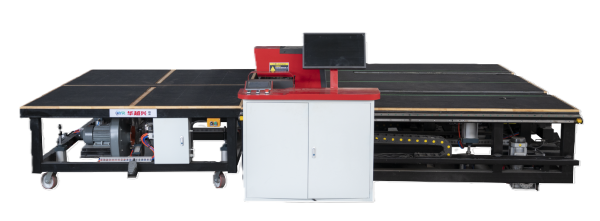

Glass Cutting Machine With Quality Assurance
Product performance
The diagram attracts on the idea of German Industry 4.0, and realizes the computerized slicing process, statistics records and wise operation. The usual body of the gear adopts bridge metal technology, which is aged after welding, and the fuselage metal plate is milled out with a gantry mill, which has high-quality energy and stability
Qualitative. Frame shape fabric is made of excessive manganese steel, excessive strength, no deformation, welding after growing old treatment, properly bodily residences can be matched with bilateral grinding, four-edge grinding line production, glass does now not fall, improve work efficiency.
Product Performance:
The design of this equipment is influenced by the concept of German Industry 4.0, achieving an automated cutting process, data logging, and smart operation. The main structure of the machine utilizes bridge steel technology, which is treated with an aging process following welding to enhance its durability.
The material used for the frame's construction is high-manganese steel, known for its high strength and resistance to deformation. After the welding process, it undergoes an aging treatment to refine its physical attributes. This frame is designed to support bilateral grinding and a four-edge grinding line, preventing glass from slipping and thereby enhancing the efficiency of the work process.
Technical Details:
MODEL | ACCURACY | APEED | MAX CUTTING SIZE | THICKNESS | POWER | POWER SUPPLY |
14033 | ≤±0.20mm/m | 0-220m/min | 14000mm×3300mm | 3-19mm | 70kw | 380v/50HZ |
6137 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
6133 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
5133 | ≤±0.20mm/m | 0-220m/min | 5100mm×3300mm | 3-19mm | 25kw | 380v/50HZ |
4228 | ≤±0.20mm/m | 0-220m/min | 4200mm×2800mm | 3-19mm | 18kw | 380v/50HZ |
2621 | ≤±0.20mm/m | 0-220m/min | 2600mm×2100mm | 3-19mm | 12kw | 380v/50HZ |
Remark :Special sizes can be customized |
