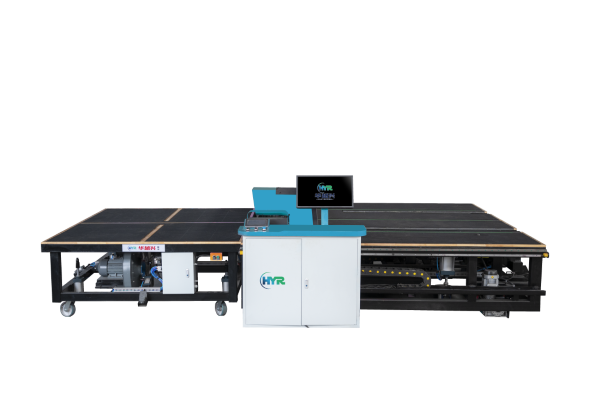

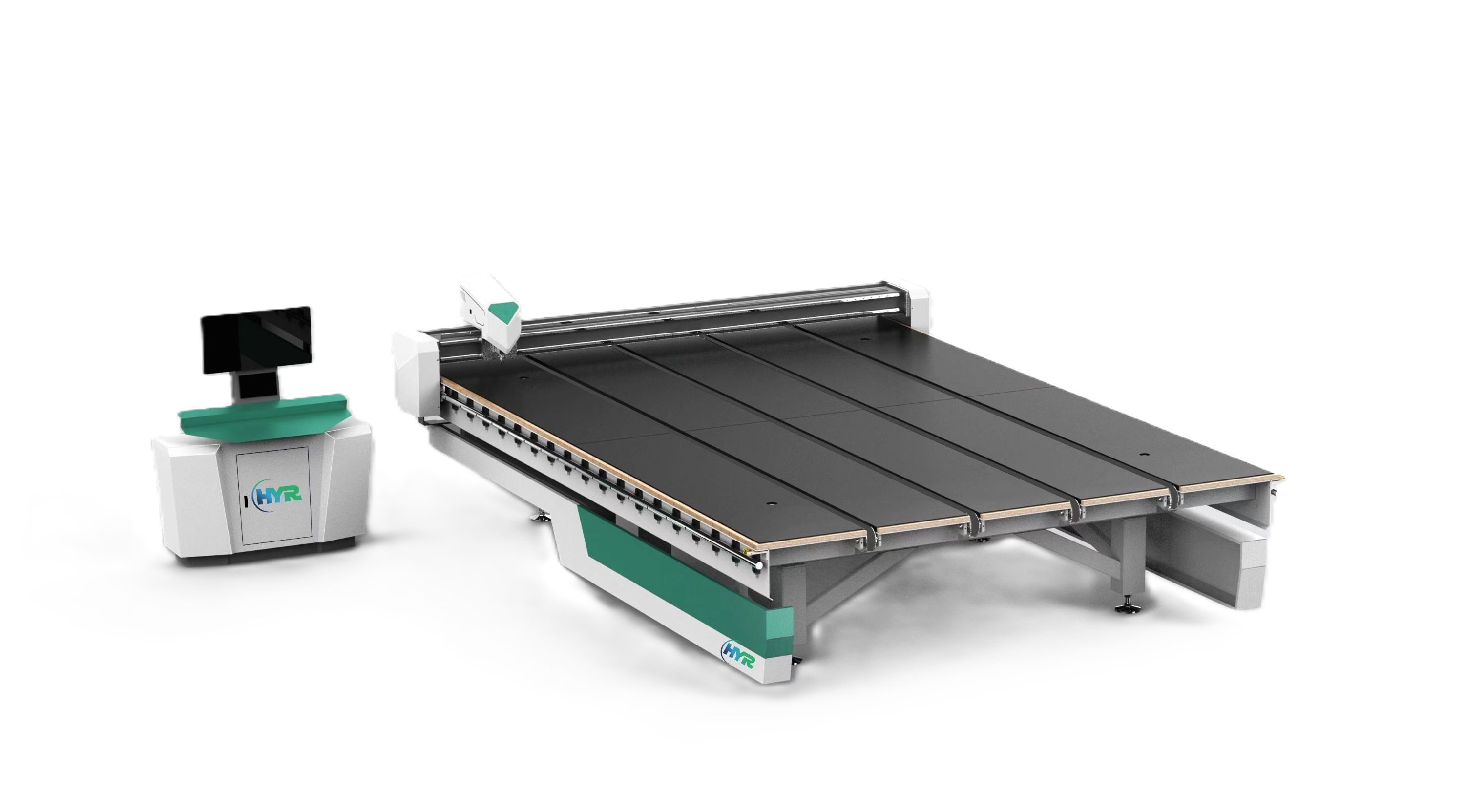

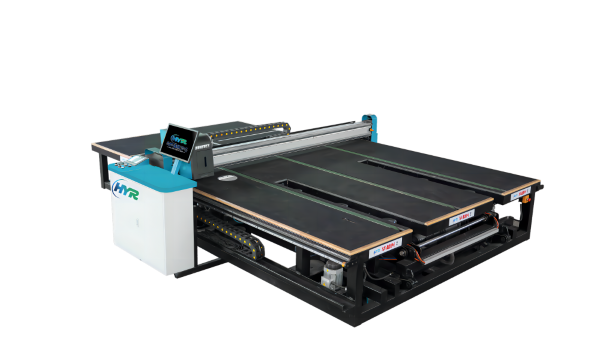

Efficient German Industry 4.0 Concept Glass Cutting Machine
Product performance
The design draws on the concept of German Industry 4.0, and realizes the automatic cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stability
Qualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding after aging treatment, good physical properties can be matched with bilateral grinding, four-edge grinding line production, glass does not fall, improve work efficiency.
Product Performance:
Incorporating the principles of German Industry 4.0, this glass cutting machine achieves an automated cutting process, data integration, and intelligent operation. The equipment's frame is constructed using bridge steel technology, which undergoes aging treatment after welding. The body steel plate is precision milled using a gantry milling machine, ensuring exceptional strength and stability. The frame structure is crafted from high manganese steel, offering high strength and resistance to deformation. Post-weld aging treatment enhances the material's physical properties, allowing for seamless integration with bilateral grinding and four-edge grinding production lines. This design prevents glass from falling and enhances overall work efficiency.
Scope of Application:

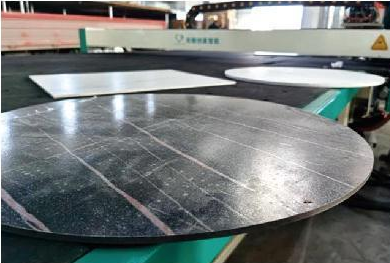

This glass cutting machine is suitable for a wide range of applications including building doors and windows, automotive glass, home appliances, kitchenware, bathroom fixtures, solar energy panels, coated glass, mirrors, and various glass handicrafts.
Different specifications of glass cutting machine can cut different glass, tell us your needs, I'll give you a recommendation!
Model | ACCURACY | APEED | MAX CUTTING SIZE | THICKNESS | POWER | POWER SUPPLY |
14033 | ≤±0.20mm/m | 0-220m/min | 14000mm×3300mm | 3-19mm | 70kw | 380v/50HZ |
6137 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
6133 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
5133 | ≤±0.20mm/m | 0-220m/min | 5100mm×3300mm | 3-19mm | 25kw | 380v/50HZ |
4228 | ≤±0.20mm/m | 0-220m/min | 4200mm×2800mm | 3-19mm | 18kw | 380v/50HZ |
2621 | ≤±0.20mm/m | 0-220m/min | 2600mm×2100mm | 3-19mm | 12kw | 380v/50HZ |
Remark :Special sizes can be customized |
