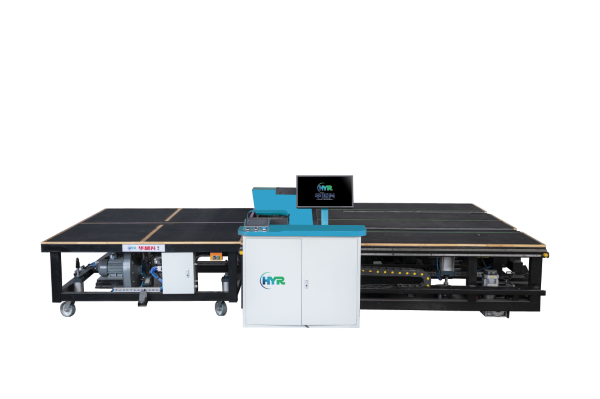

Direct Sale CNC Glass Cutting Design System
As a comprehensive technology enterprise integrating scientific research, production, sales and testing, Huayuexing has developed into a professional manufacturer of glass equipment in China, whose products cover the glass industry, rock plate industry processing equipment, doors and Windows industry, agricultural machinery and other deep processing equipment.
Product Performance Highlights:
Drawing inspiration from the concepts of Germany's Industry 4.0, the system achieves an automated cutting process, while also capturing statistics and enabling intelligent operation. The tool's main structure utilizes bridge metal technology, undergoing aging treatment post-welding. The body's metal plate is precision-milled using a gantry mill, ensuring exceptional power and robust stability. The frame's fabric is constructed from high-manganese steel, boasting superior strength and resistance to deformation. After aging treatment, the welding process ensures the frame maintains its precise physical properties, complemented by bilateral grinding and four-edge grinding line production. This design prevents glass from slipping, thereby enhancing overall work efficiency.
Technical Detail:
Model | ACCURACY | APEED | MAX CUTTING SIZE | THICKNESS | POWER | POWER SUPPLY |
14033 | ≤±0.20mm/m | 0-220m/min | 14000mm×3300mm | 3-19mm | 70kw | 380v/50HZ |
6137 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
6133 | ≤±0.20mm/m | 0-220m/min | 6100mm×3700mm | 3-19mm | 25kw | 380v/50HZ |
5133 | ≤±0.20mm/m | 0-220m/min | 5100mm×3300mm | 3-19mm | 25kw | 380v/50HZ |
4228 | ≤±0.20mm/m | 0-220m/min | 4200mm×2800mm | 3-19mm | 18kw | 380v/50HZ |
2621 | ≤±0.20mm/m | 0-220m/min | 2600mm×2100mm | 3-19mm | 12kw | 380v/50HZ |
Remark :Special sizes can be customized |
As a well-known Chinese brand, Huayuexing has created a professional team with responsibility and professionalism in technology, marketing and after-sales since its establishment. With professional ability and service spirit, based on the needs of the industry, to provide customers with stable performance, advanced technology processing equipment.
