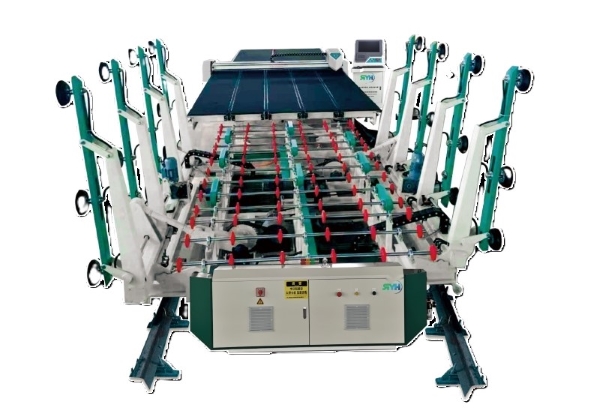

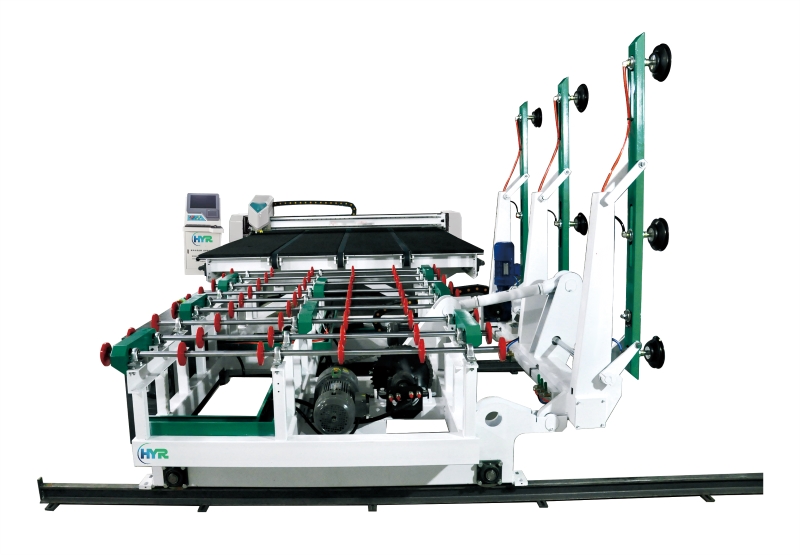

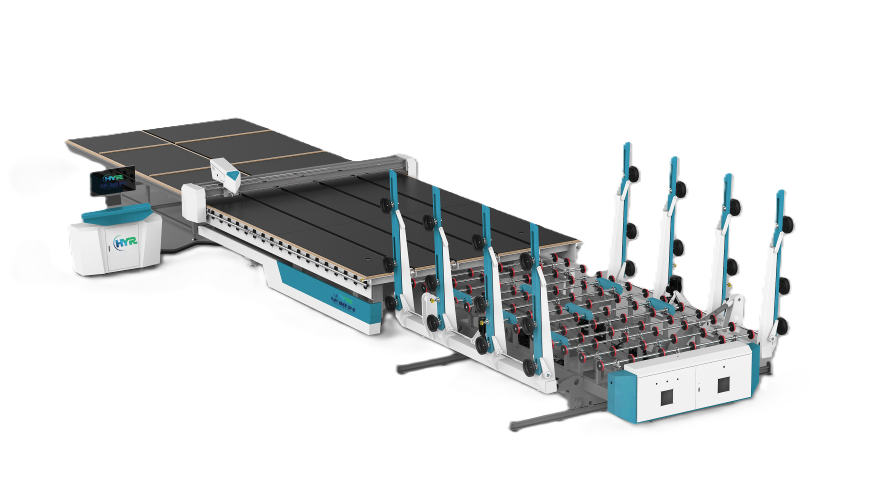

Classic High-Strength Glass Cutting Machine

Product performance

The design draws on the concept of German Industry 4.0, and realizes the automatic cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stability qualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding after aging treatment, good physical properties can be matched with bilateral grinding, four-edge grinding line production, glass does not fall, improve work efficiency.


Contact Now E-Mail Telephone WhatsApp
Product Details

Experience the future of glass cutting with our state-of-the-art Glass Cutting Machine. Engineered to perfection, this cutting-edge technology is designed to enhance productivity, precision, and efficiency in the glass industry. Embrace the power of German Industry 4.0 with our innovative solution that promises to revolutionize your glass processing operations.

Classic High-Strength Glass Cutting MachineClassic High-Strength Glass Cutting Machine

Product performance

The design draws on the concept of German Industry 4.0, and realizes the automatic cutting process, information data and intelligent operation. The overall frame of the equipment adopts bridge steel technology, which is aged after welding, and the fuselage steel plate is milled out with a gantry mill, which has super strength and stability qualitative. Frame structure material is made of high manganese steel, high strength, no deformation, welding after aging treatment, good physical properties can be matched with bilateral grinding, four-edge grinding line production, glass does not fall, improve work efficiency.


Scope of use

Building, central control doors and Windows, automobiles, home appliances, kitchenware, bathroom, solar energy, coating, mirror, handicrafts and other glass


Technical Reference:


Model


ACCURACY


APEED


MAX CUTTING SIZE


THICKNESS


POWER


POWER SUPPLY

14033

≤±0.20mm/m

0-220m/min

14000mm×3300mm

3-19mm

70kw

380v/50HZ

6137

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

6133

≤±0.20mm/m

0-220m/min

6100mm×3700mm

3-19mm

25kw

380v/50HZ

5133

≤±0.20mm/m

0-220m/min

5100mm×3300mm

3-19mm

25kw

380v/50HZ

4228

≤±0.20mm/m

0-220m/min

4200mm×2800mm

3-19mm

18kw

380v/50HZ

2621

≤±0.20mm/m

0-220m/min

2600mm×2100mm

3-19mm

12kw

380v/50HZ

Remark :Special sizes can be customized


Invest in the future of your business with our Glass Cutting Machine. Designed to deliver unparalleled performance, this machine is the perfect blend of innovation, reliability, and efficiency. Upgrade your glass processing capabilities today and experience the difference that comes with cutting-edge technology.

Contact us now to request a quote or to learn more about how our Glass Cutting Machine can transform your production line.
